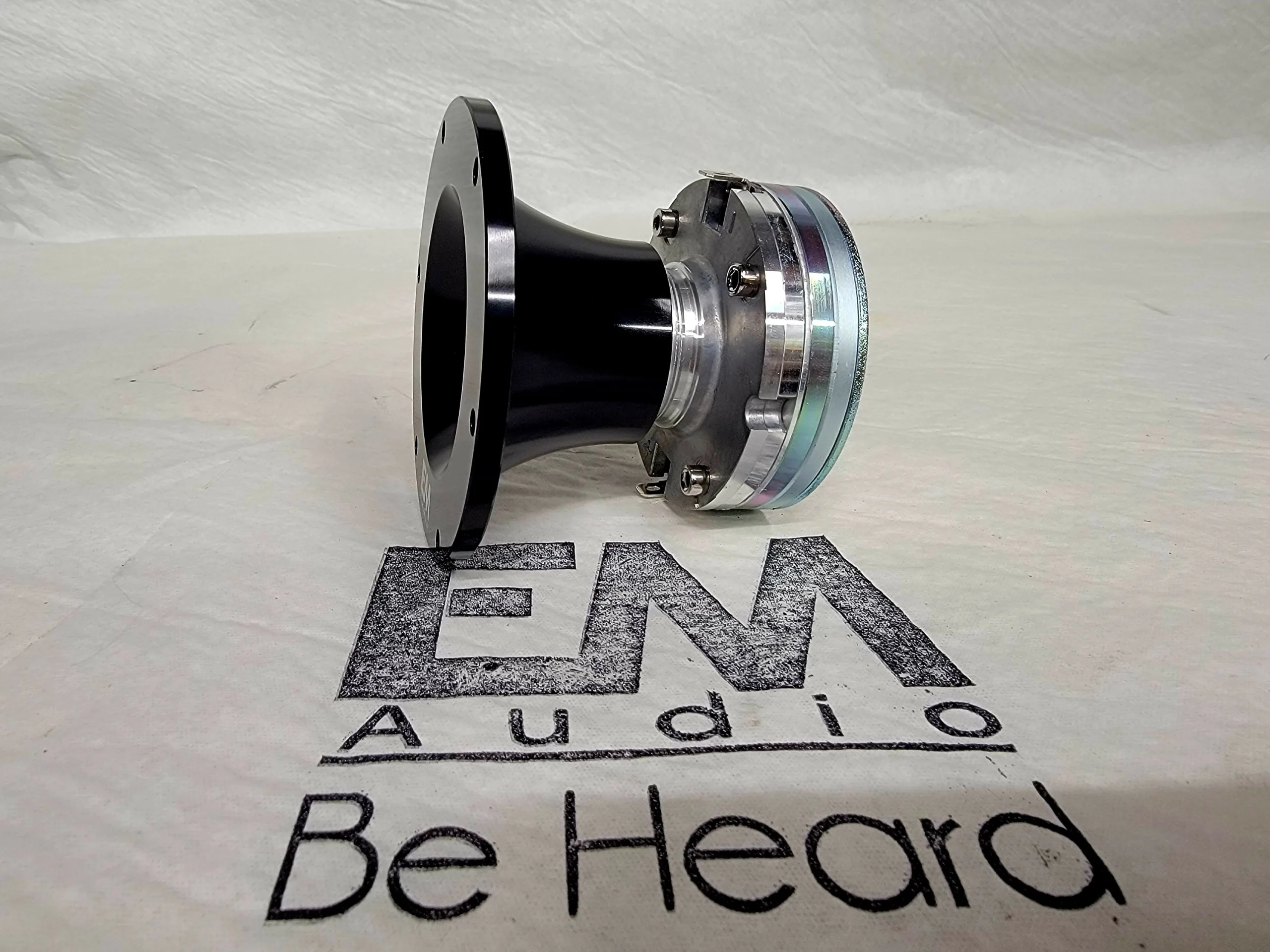

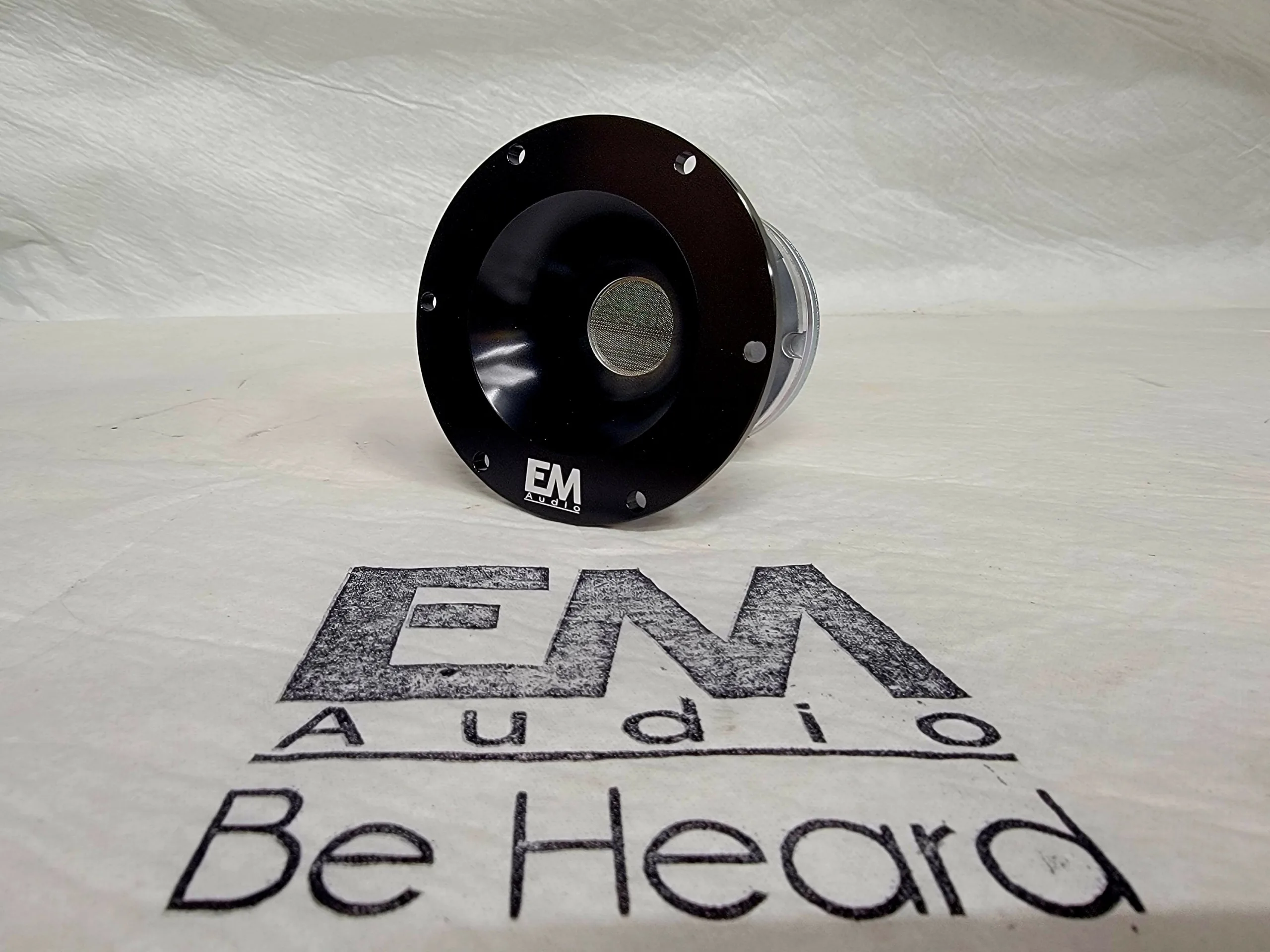

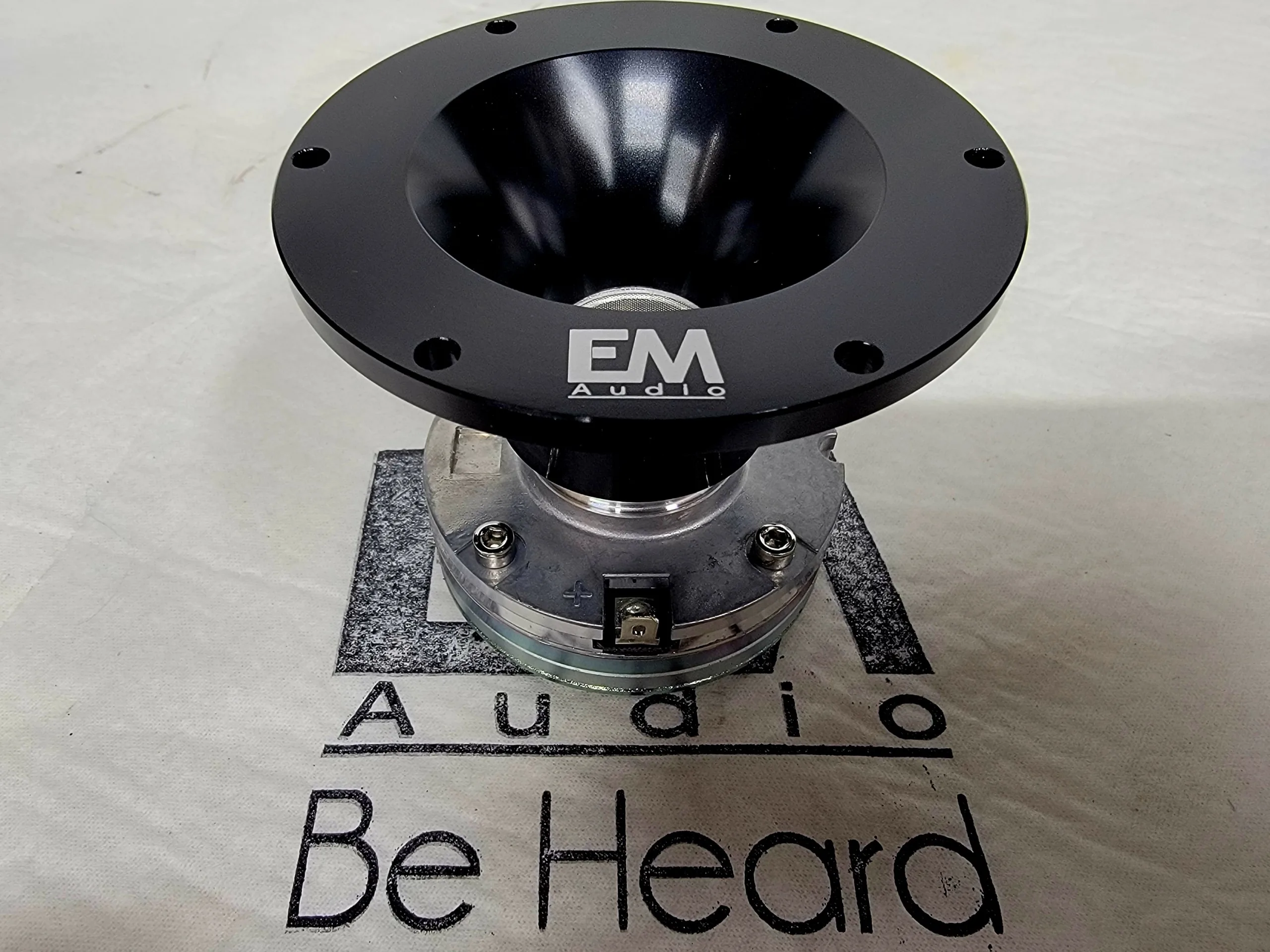

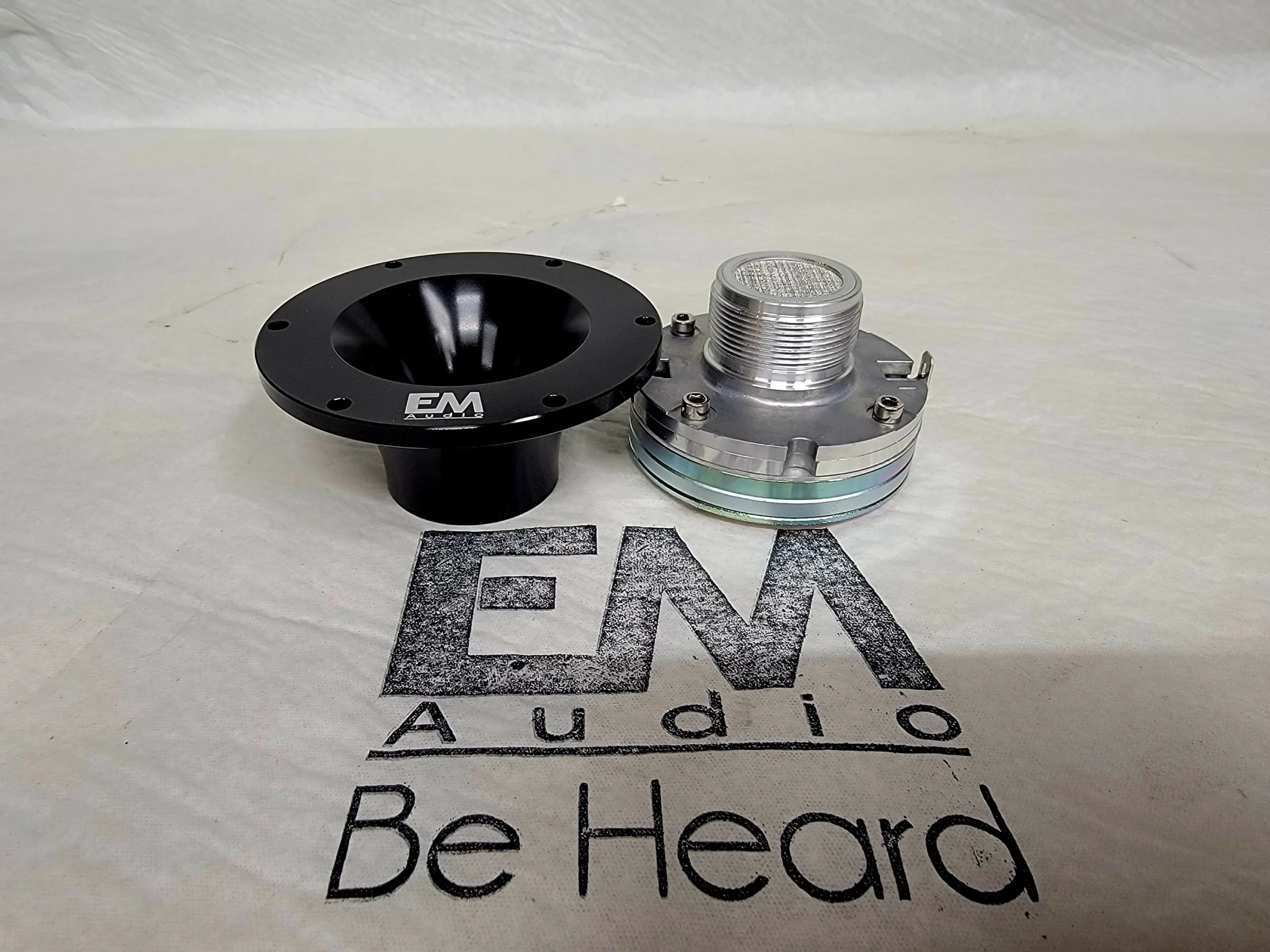

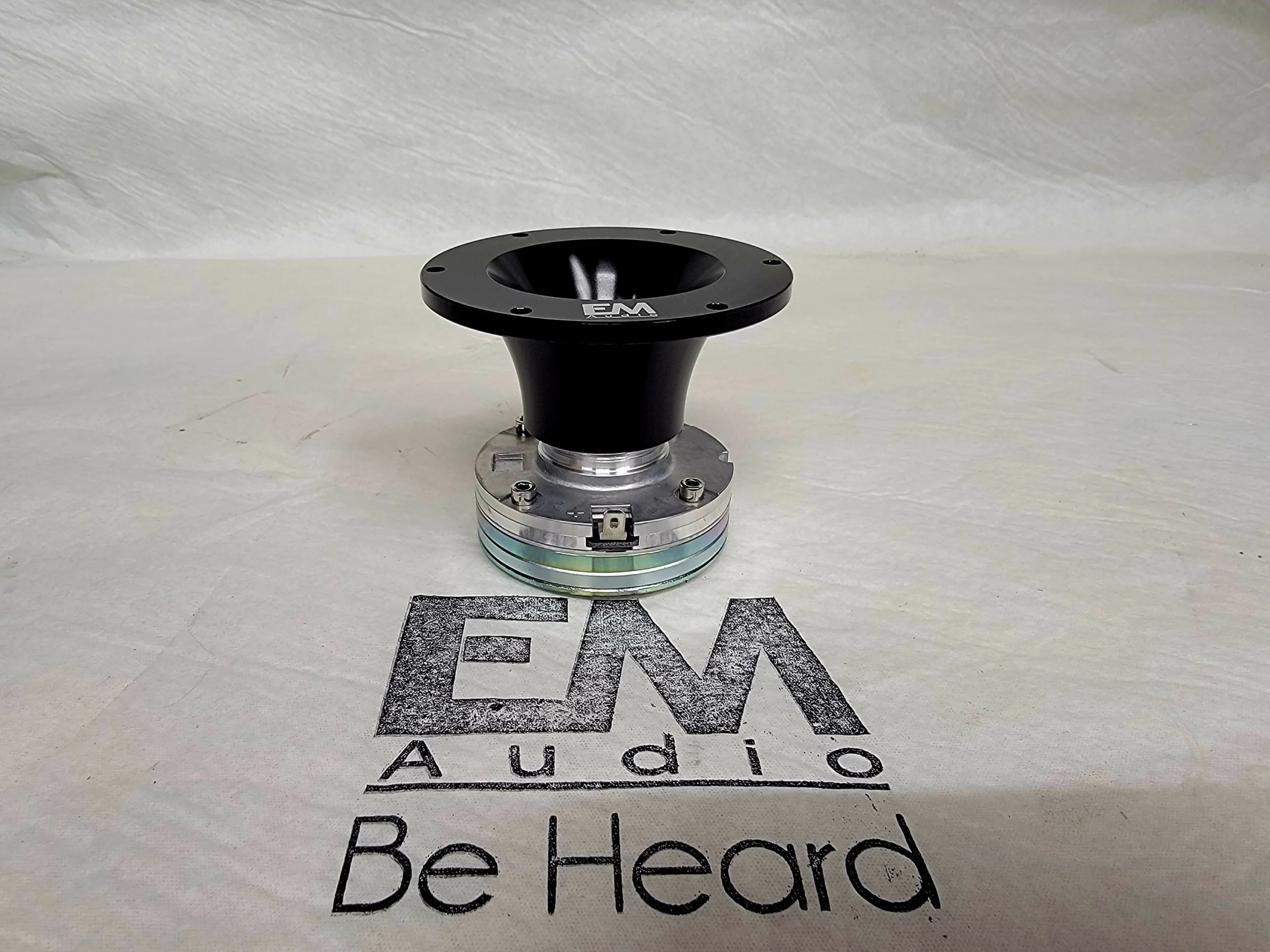

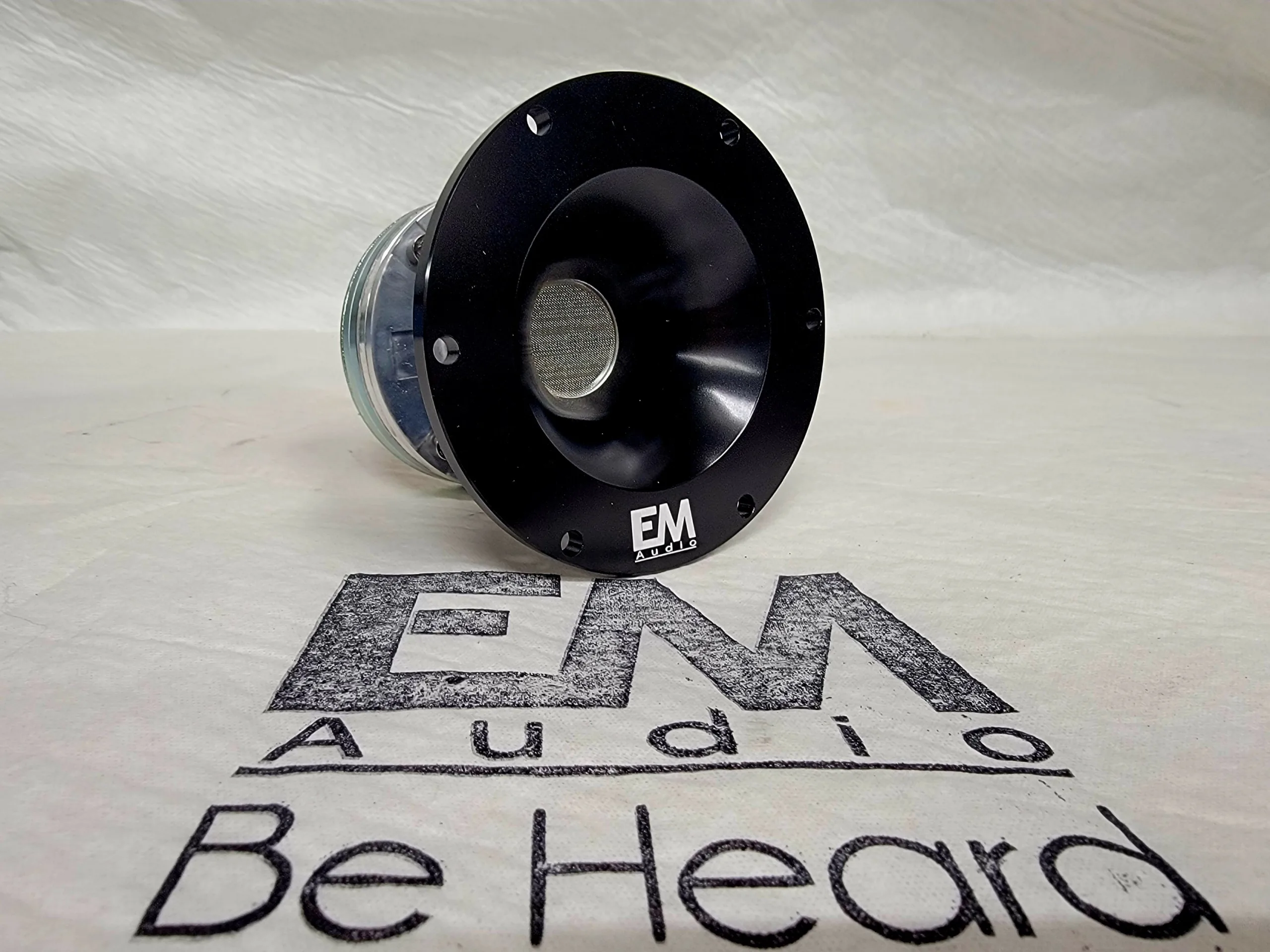

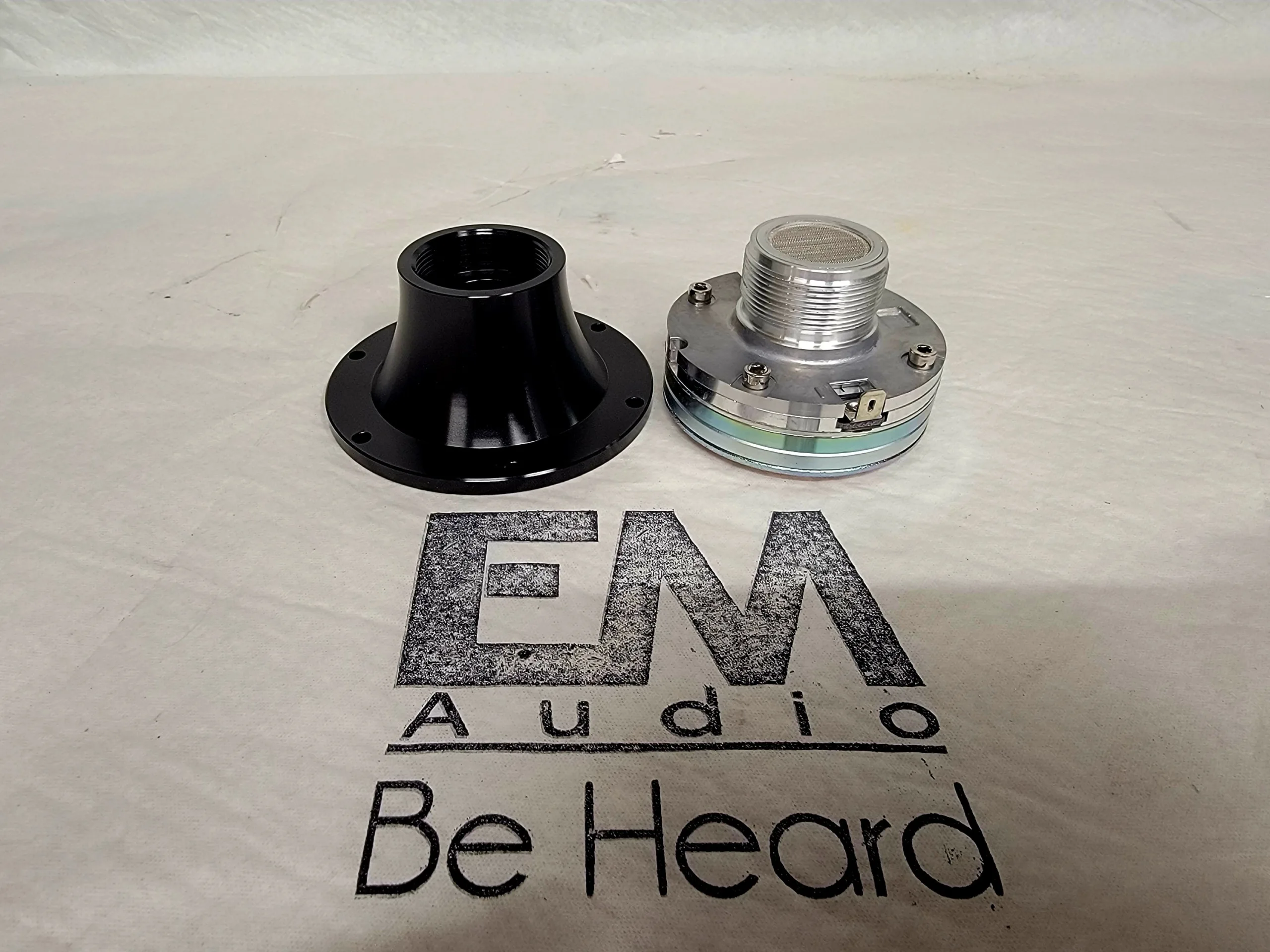

🔊 EM Audio 3.55″ Mini Horns – Compact Size. Extreme Performance.
The EM Audio Mini Horns are more than just loud—they’re a statement of craftsmanship and clarity. Built from the ground up with precision and purpose, each horn combines high-performance sound engineering with a custom-machined, all-aluminum throat that not only enhances heat dissipation but also adds a bold, aggressive aesthetic to any install.
These aren’t your average compression drivers. The sleek, anodized aluminum finish gives a professional, high-end look that matches the performance under the hood. Whether you’re competing or just building a show-stopping daily driver, the EM Mini Horns stand out visually and sonically.
At the heart of this beast is a neodymium motor, delivering powerful magnetic force in a compact package—perfect for maximizing output without sacrificing space. The titanium diaphragm delivers razor-sharp highs with stunning accuracy, while the CCAW coil and KSV former ensure thermal stability and long-term durability, even at high volumes.
This is not an off-the-shelf horn—it’s a finely tuned weapon designed for serious sound. Every component was selected to handle real-world abuse while delivering studio-level clarity.
Whether you’re after show-winning looks or crystal-clear high frequency output at 160+ dB, the EM Audio 3.55” Mini Horns were built for the spotlight.

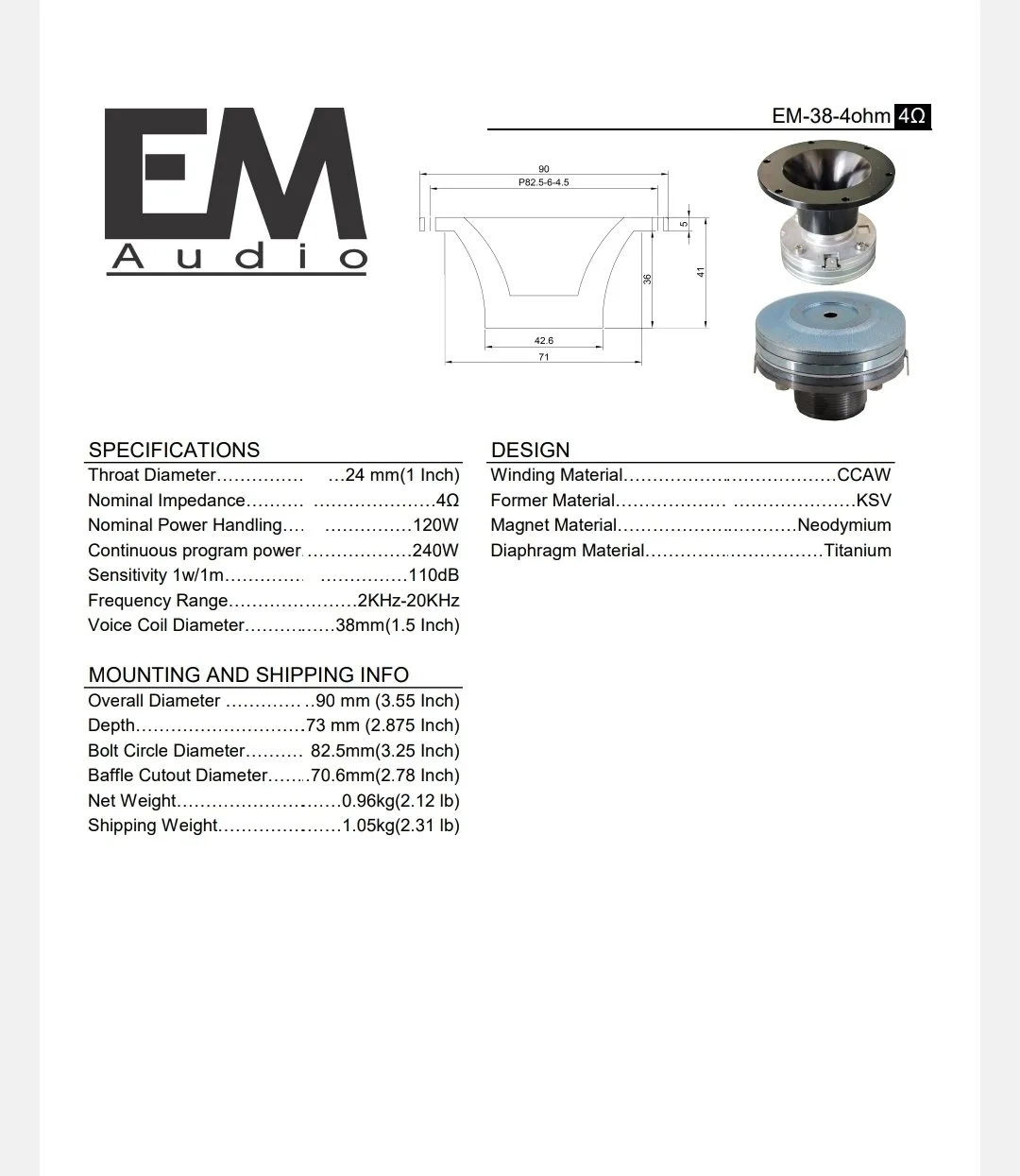

SPECIFICATIONS
Throat Diameter 24 mm(1 lInch)
Nominal Impedance 4
Nominal Power Handling 120w Continuous Program power. 240W
Sensitivity 1w/1m. 110dB
Frequency Range. 2KHz-20KHz
Voice Coil Diameter. 38mm(1.5 Inch)
DESIGN
Winding Material. CCAW
Former Material. KSv
Magnet Material. Neodymium
Diaphragm Material. Titanium
MOUNTING AND SHIPPING INFO
Overall Diameter. 90 mm (3.55 lnch)
Depth. 73 mm (2.875 Inch)
Bolt Circle Diameter. 82.5mm(3.25 Inch)
Baffle Cutout Diameter. 70.6mm(2.78 Inch)
Neo motor width 70mm(2.75 Inch)
Net Weight (complete horn) 0.96kg(2.12 lb)
Shipping Weight…. ..1.05kg(2.31 lb)
Diaphragms are available if you blow one. they are 30 each. call or email us to order them.
