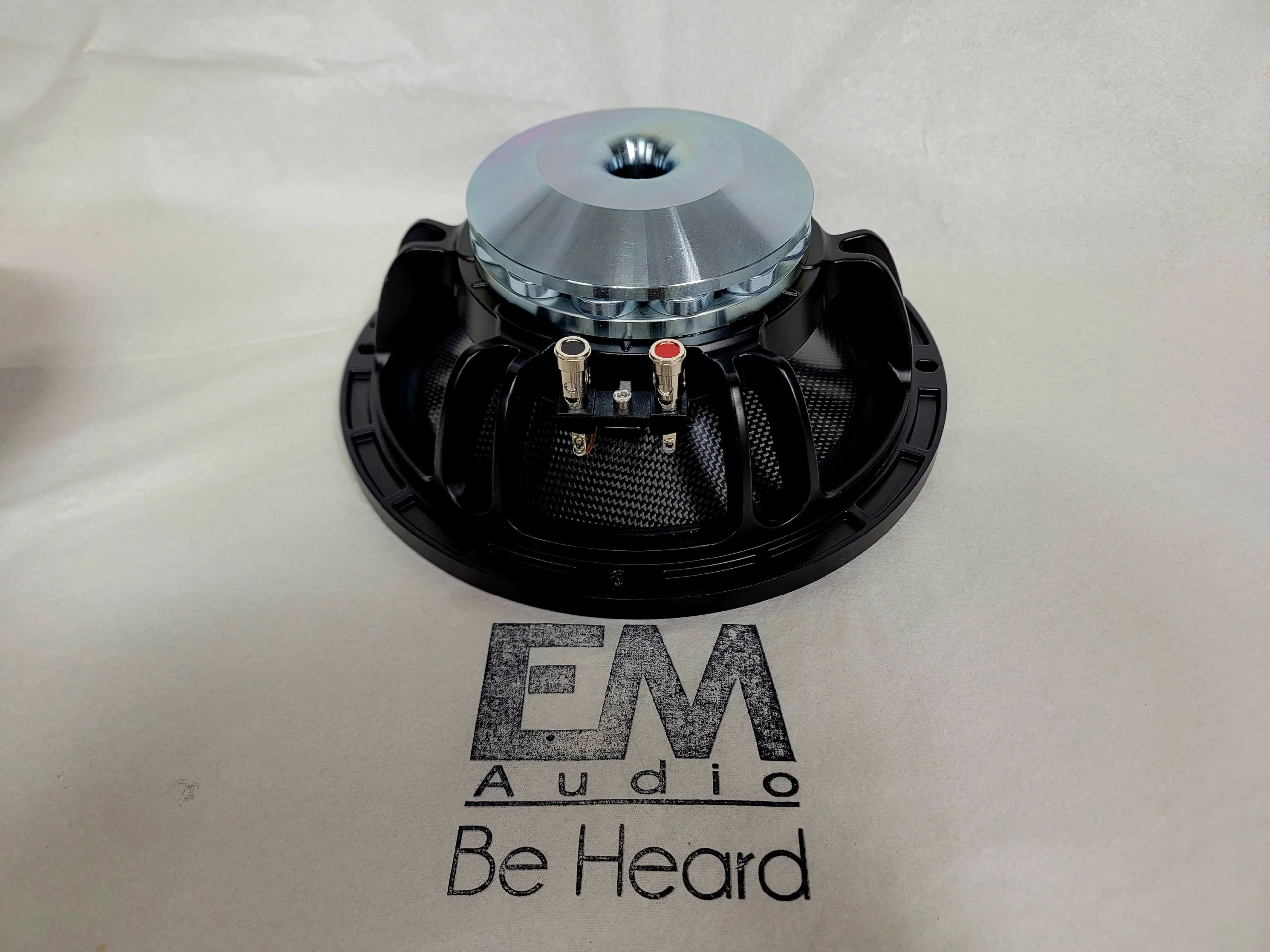

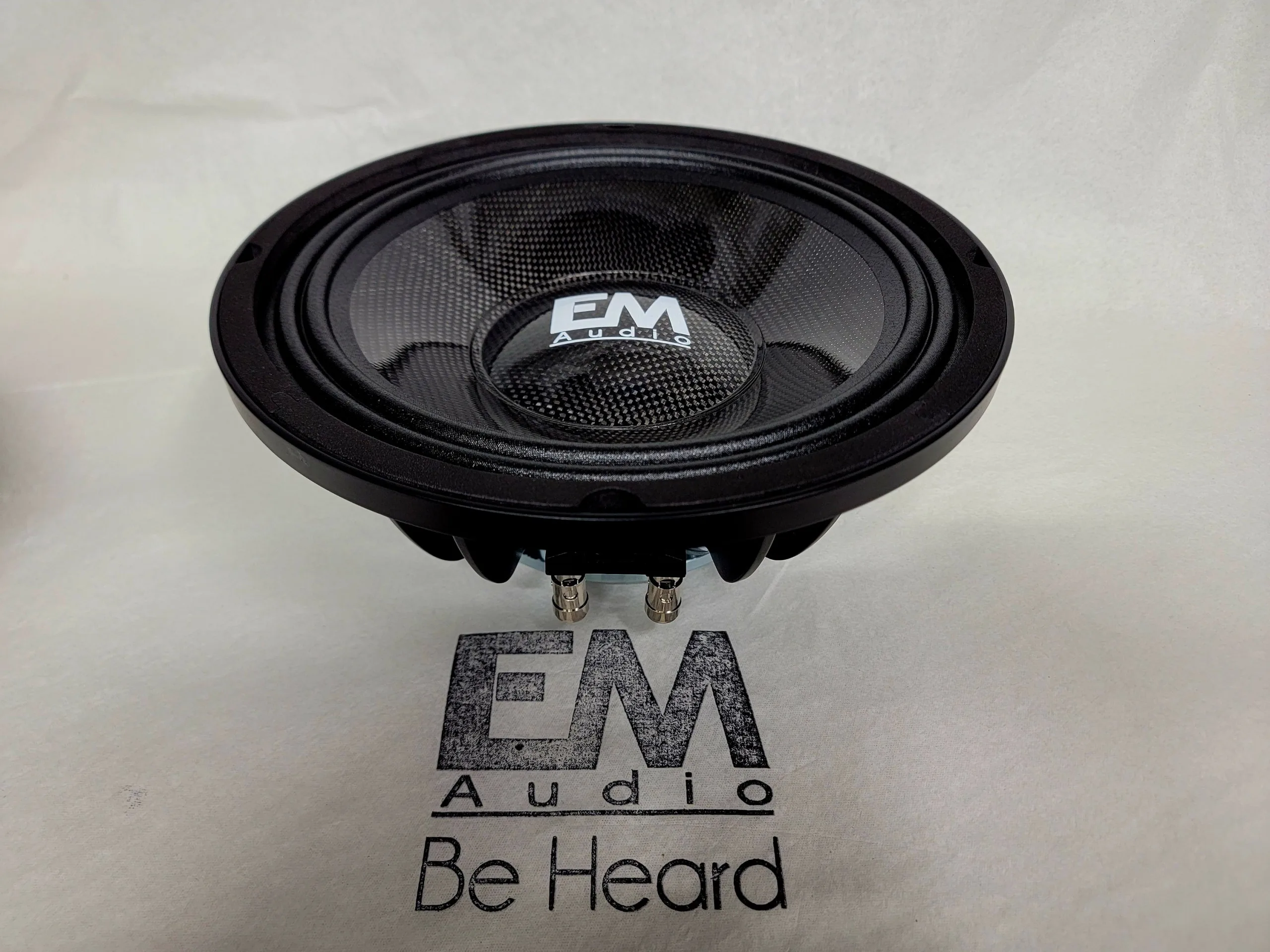

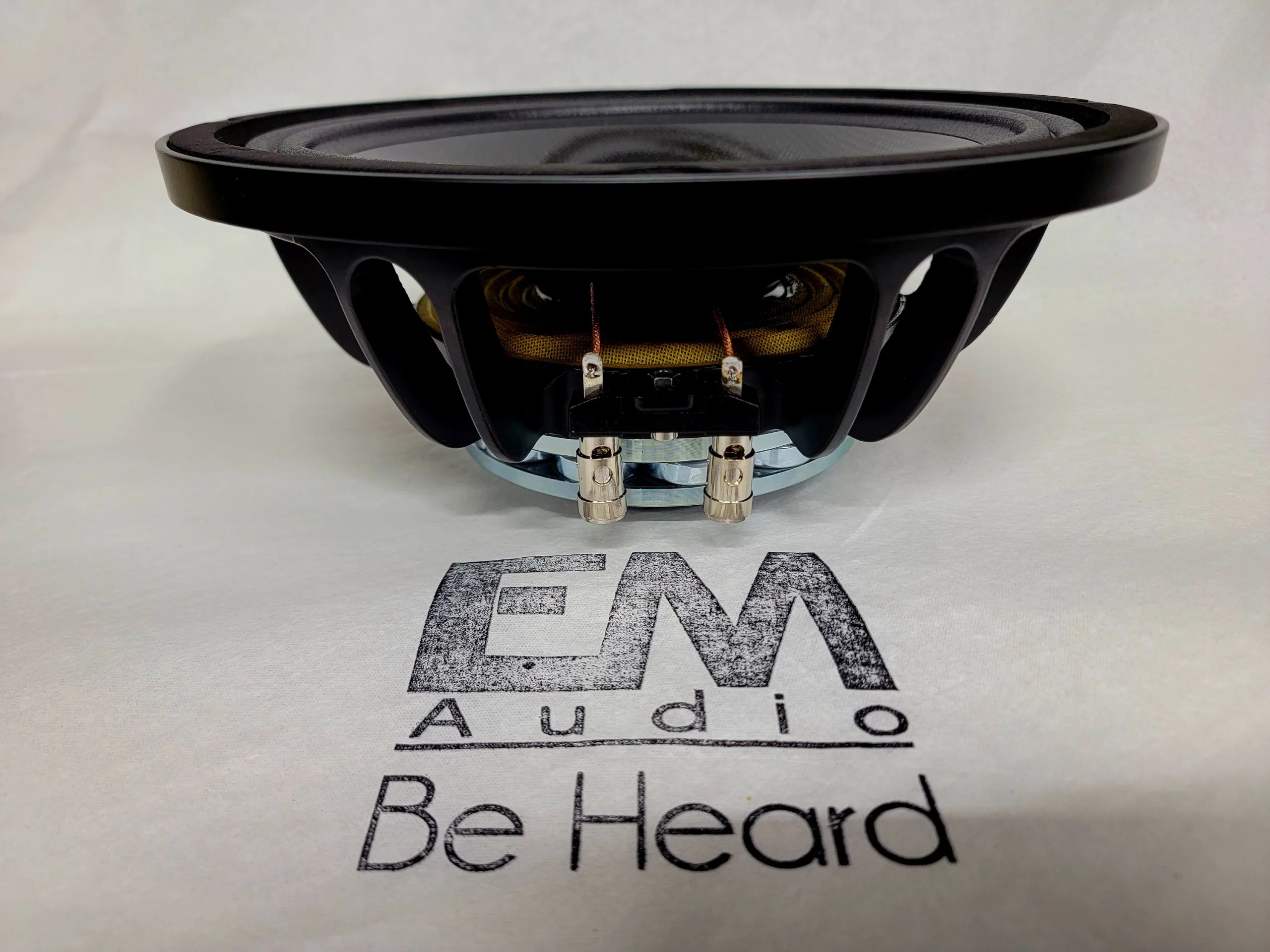

EM Audio 10″ Neo Midbass / midrange driver

Description

Will Ship middle of March
Specifications:
Nominal Diameter: 254mm (10″)
Nominal Impedance: 4Ω
Nominal Power Handling: 300W
Continuous Program Power: 600W
Sensitivity (1w/1m): 96dB
Frequency Range: 45-6000Hz
Voice Coil Diameter: 65mm (2.5″)
Winding Material: Aluminum
Design:
Surround Shape: Double roll-cloth
Cone Material: Carbon
Magnet Material: strong Neodymium
Woofer Cone Treatment: Weather protected

Parameters:
Fs: 45hz
Re: 3.2
Qes: 0.9466
Qms: 2.929
Qts: 0.7155
Cms: 0.1982
Mms: 40.948
Bl: 13.145
Vas: 104.92
dBSPL: 96
SD: 0.0616

Mounting and Shipping Info

Overall Diameter: 261mm (10.27″)
Bolt Circle Diameter: 245mm (9.65″)
Baffle Cutout Diameter: 234mm (9.21″)
Depth: 3.465″
Net Weight: 3.25kg (7.17lb)
Shipping Weight: 3.75kg (8.27lb)
