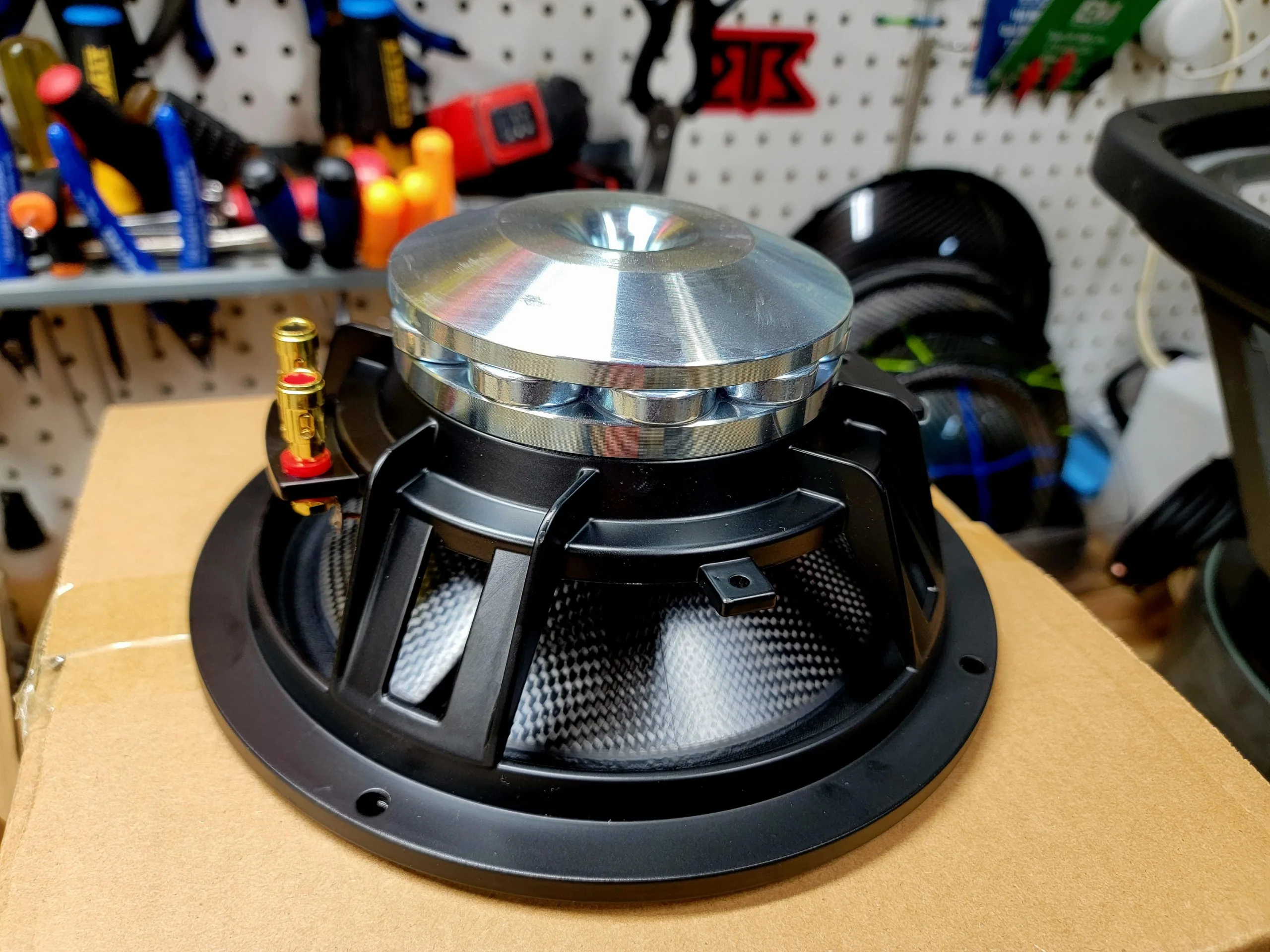

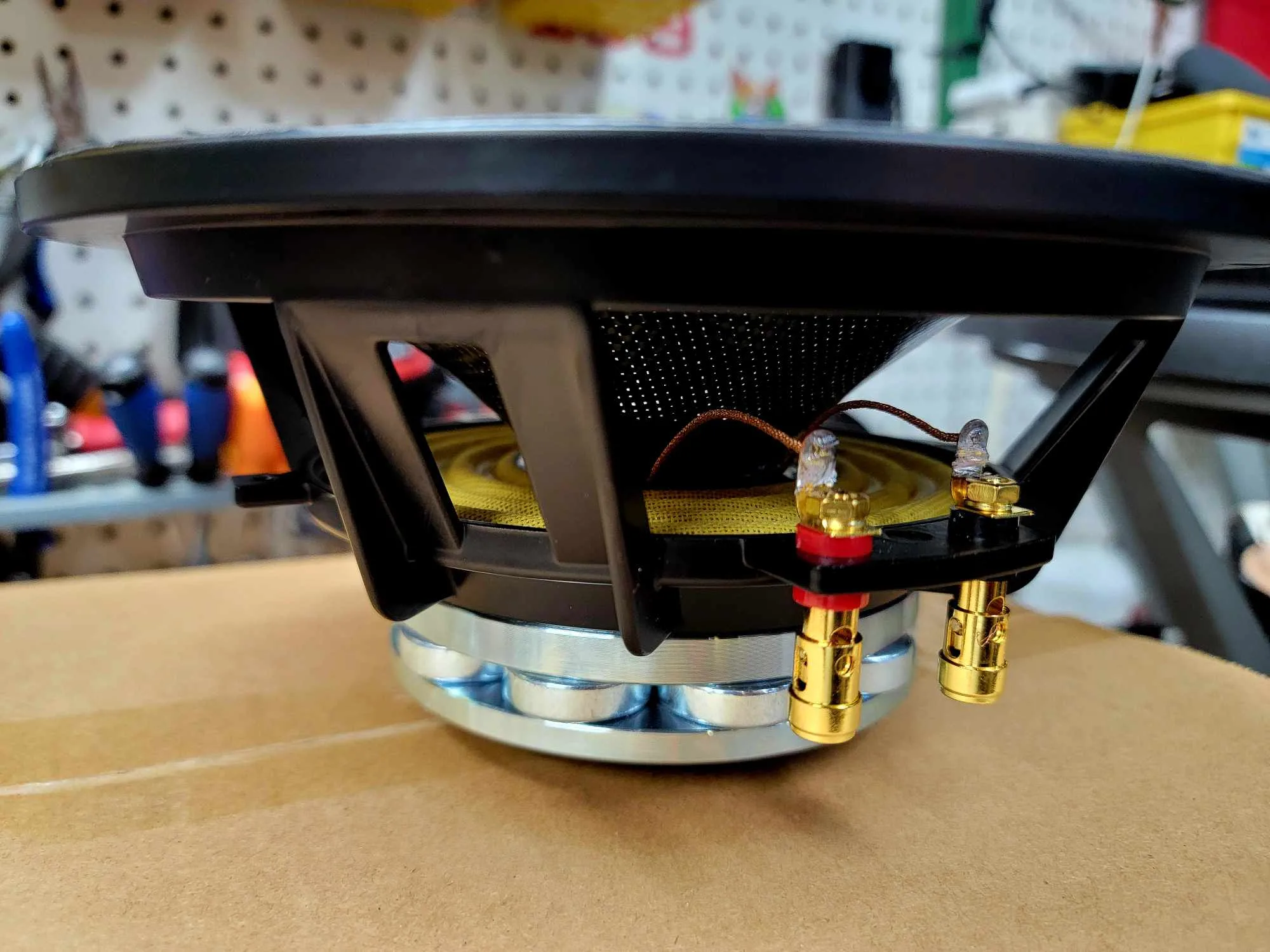

EM Audio 8″ Neo Midrange

Description

Will Ship middle of March

Specifications:

• Nominal Diameter: 203 mm (8 inch)
• Nominal Impedance: 4Ω
• Nominal Power Handling: 300W
• Continuous Program Power: 500W
• Sensitivity (1w/1m): 96dB
• Frequency Range: 66-6000Hz
• Voice Coil Diameter: 50mm (2 inch)
• Winding Material: Aluminum

Design:

• Surround Shape: Double roll-cloth
• Cone Material: Carbon
• Magnet Material: strong Neodymium
• Woofer Cone Treatment: Weather protected for the bagger/Harley guys

Parameters:

• Fs: 66Hz
• Re: 3.2
• Qes: 0.531
• Qms: 2.911
• Qts: 0.451
• Cms: 0.1388
• Mms: 24.6 g
• Bl: 9.787
• Vas: 9.55L
• dBSPL: 99db
• SD: 0.0216m²

Mounting and Shipping Info:

• Overall Diameter: 210 mm (8.27 inch)
• Bolt Circle Diameter: 197 mm (7.76 inch)
• Baffle Cutout Diameter: 180 mm (7.09 inch)
• Depth: 95 mm (3.75 inch)
• Flange and Gasket Thickness: 3 mm (0.12 inch)
• Net Weight: 2.4 kg (5.3 lbs)
• Shipping Weight: 2.8 kg (6.2 lbs)
• Shipping Box: 270x270x105 mm(10.6×10.6×4.1 inches)
