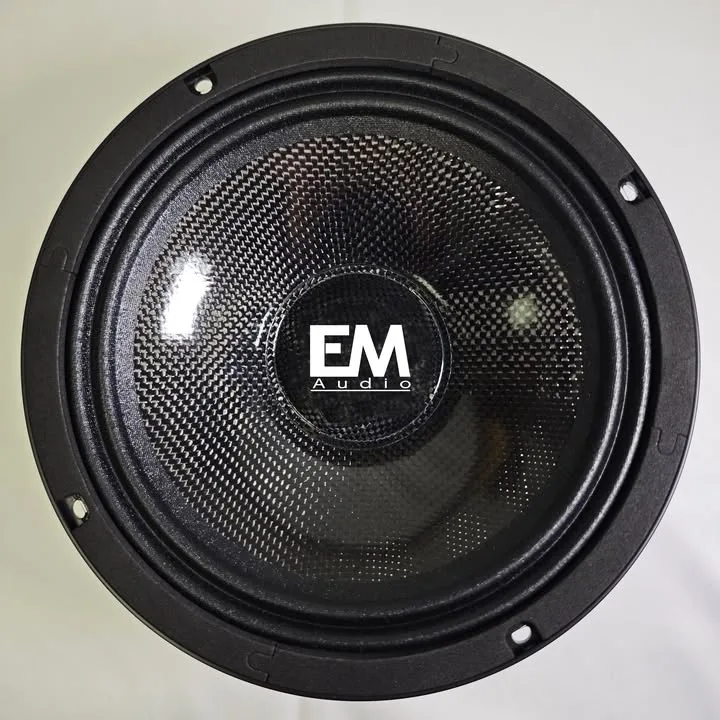

EM Audio 6.5″ Neo Midrange

Description

Will Ship middle of March

Specifications:

• Nominal Diameter: 152 mm (6.5 inch)
• Nominal Impedance: 4Ω
• Nominal Power Handling: 300W
• Continuous Program Power: 400W
• Sensitivity (1w/1m): 93dB
• Frequency Range: 80-10000Hz
• Voice Coil Diameter: 50mm (2 inch)
• Winding Material: Aluminum

Design:

• Surround Shape: Double roll-cloth
• Cone Material: Carbon
• Magnet Material: strong Neodymium
• Woofer Cone Treatment: Weather protected for the bagger/Harley guys

Parameters:

• Fs: 80Hz
• Re: 3.2
• Qes: 0.531
• Qms: 5.152
• Qts: 0.423
• Cms: 0.141
• Mms: 11.5 g
• Bl: 11.44
• Vas: 4.93L
• dBSPL: 98.98
• SD: 0.0133m²

Mounting and Shipping Info:

• Overall Diameter: 173 mm (6.81 inch)
• Bolt Circle Diameter: 161 mm (6.34 inch)
• Baffle Cutout Diameter: 147 mm (5.79 inch)
• Depth: 77 mm (3.03 inch)
• Flange and Gasket Thickness: 3 mm (0.12 inch)
• Net Weight: 2.1 kg (4.63 lbs)
• Shipping Weight: 2.5 kg (5.51 lbs)
• Shipping Box: 220x220x105 mm(8.66×8.66×4.13 inches)
