Description

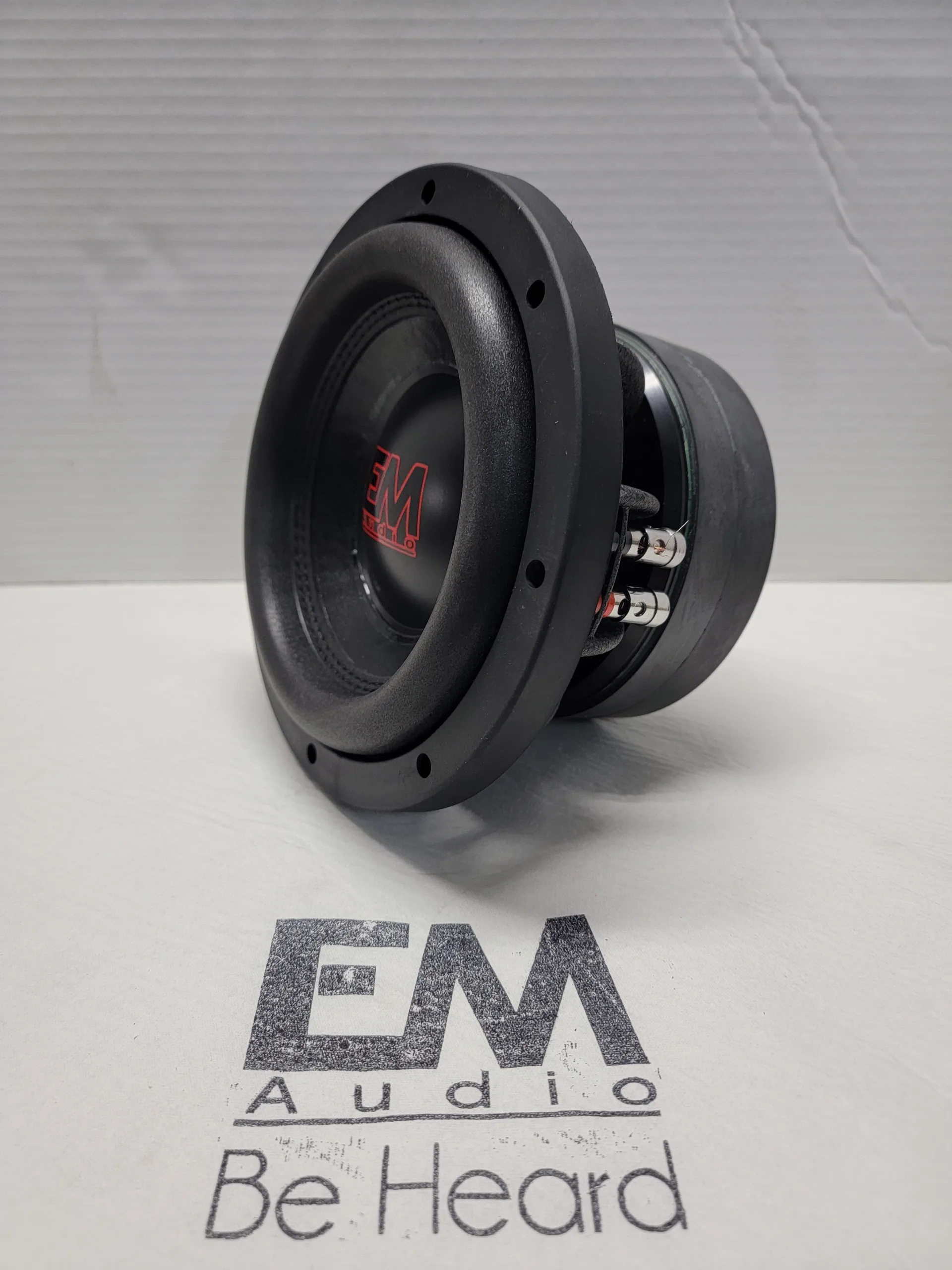

The EM 1k 8 is a true 8″ subwoofer, not a midbass with a big rating. A 190 oz Y35 triple-stack motor with cross-vent pole and channel cooling drives a 2.5″ 4-layer aluminum flat-wound American-made coil, so it takes 1,000W RMS all day and 4,000W on burps. A double-layer 6.5″ × 2.5″ linear spider pack and a big roll surround with red stitching keep it controlled, and the pressed pulp cone keeps it quick. It is one of the few 8s on the market that is hand built in house.
Highlights
- 1,000W RMS continuously rated; 4,000W on burps
- 2.5″ 4-layer aluminum flat-wound American-made coil, dual 2 or dual 1 ohm

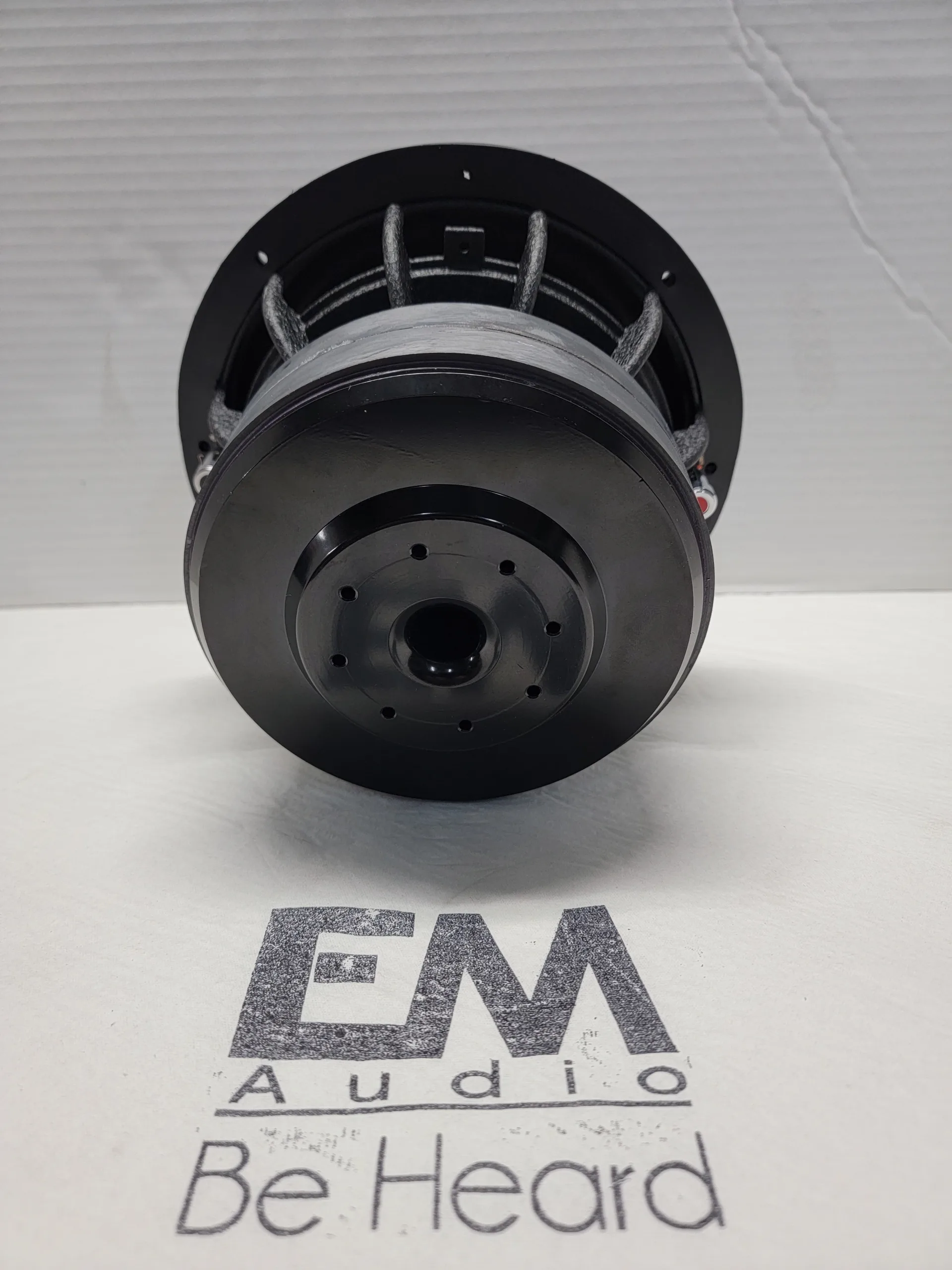

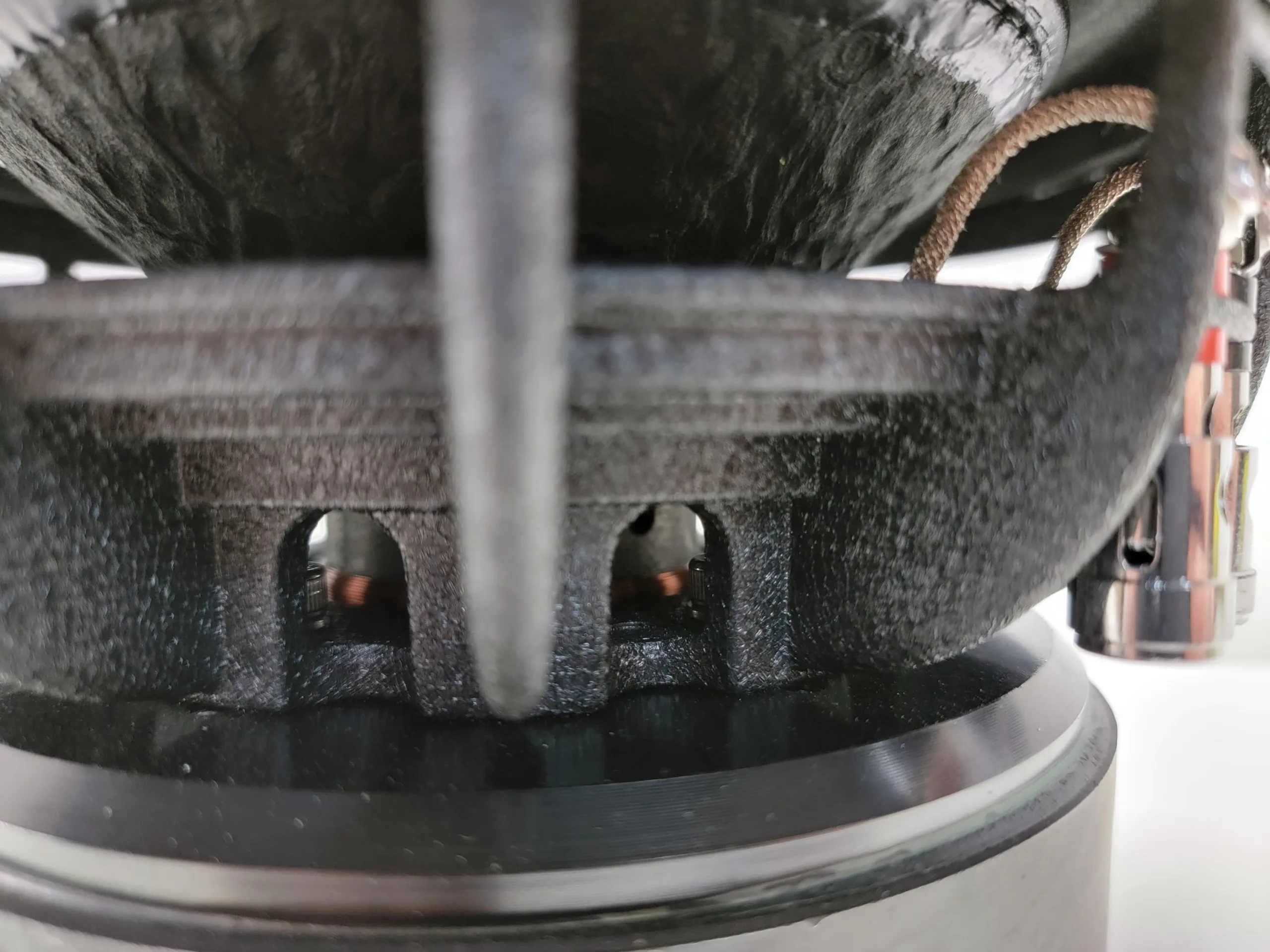

- 190 oz Y35 triple-stack, heavily vented motor with cross-vent pole and channel cooling
- Double-layer 6.5″ × 2.5″ linear red spider pack

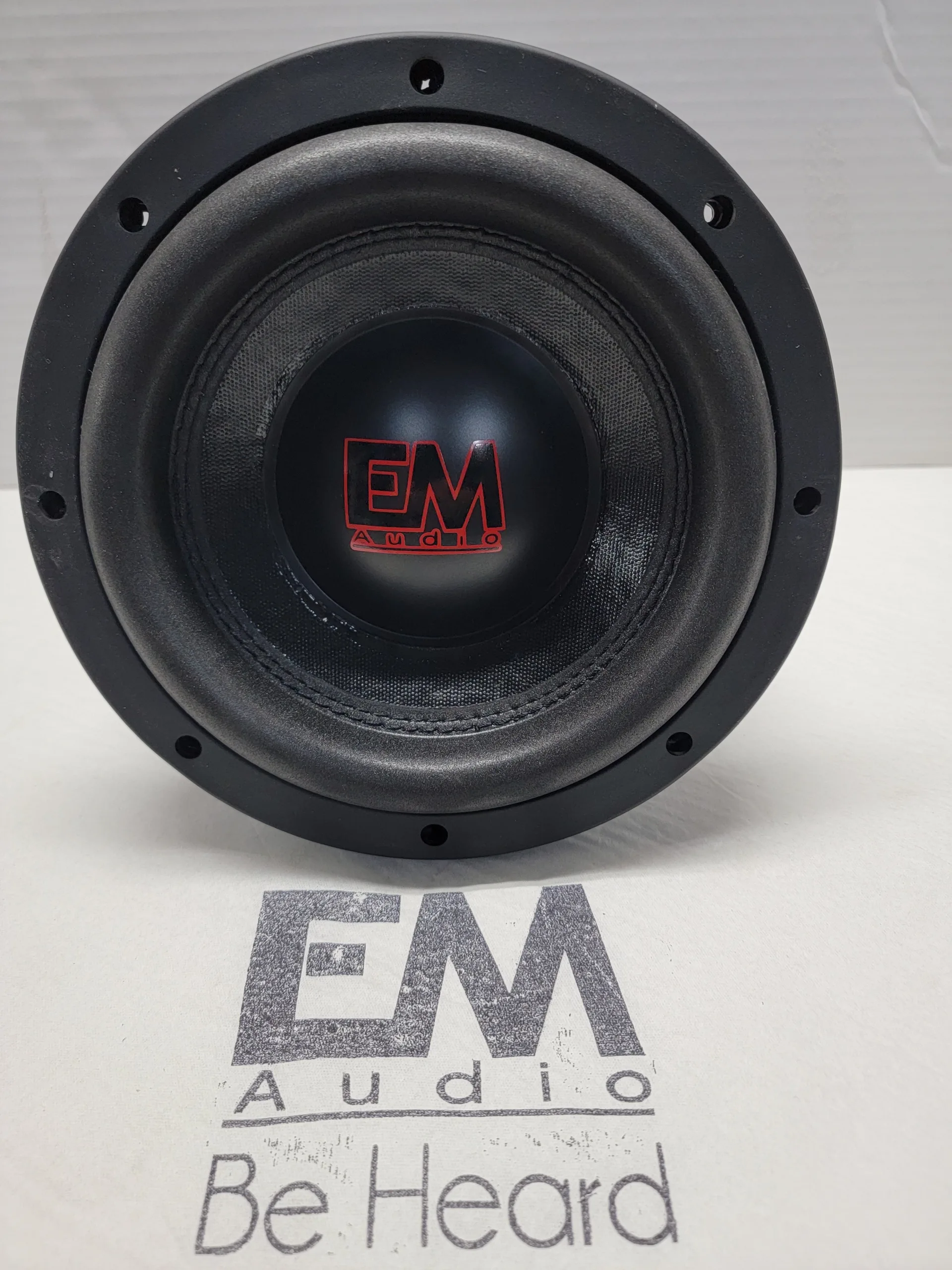

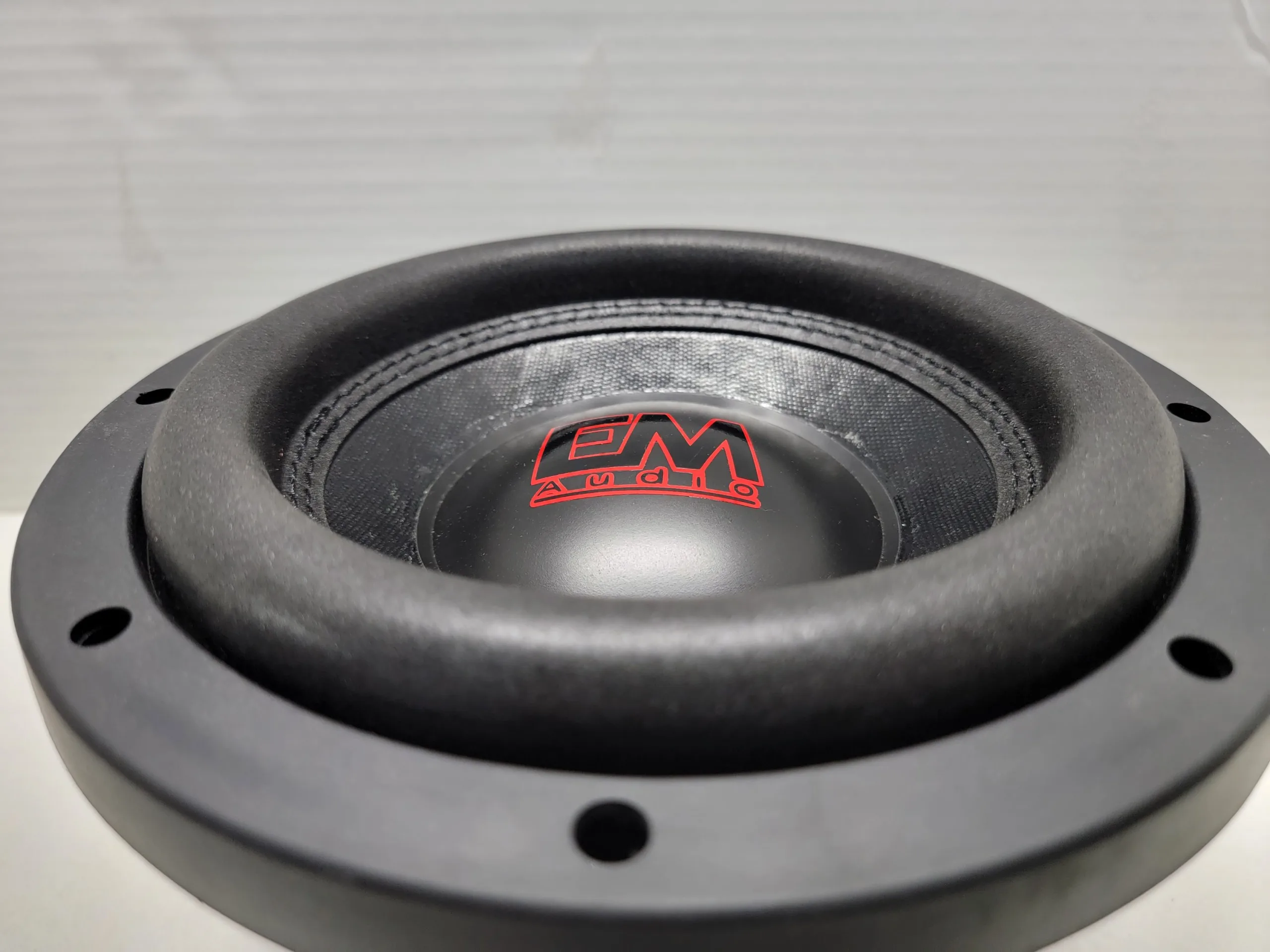

- Pressed pulp cone with a big roll surround and red stitching
- 3.5″ black poly dust cap with 2-tone EM Audio logo

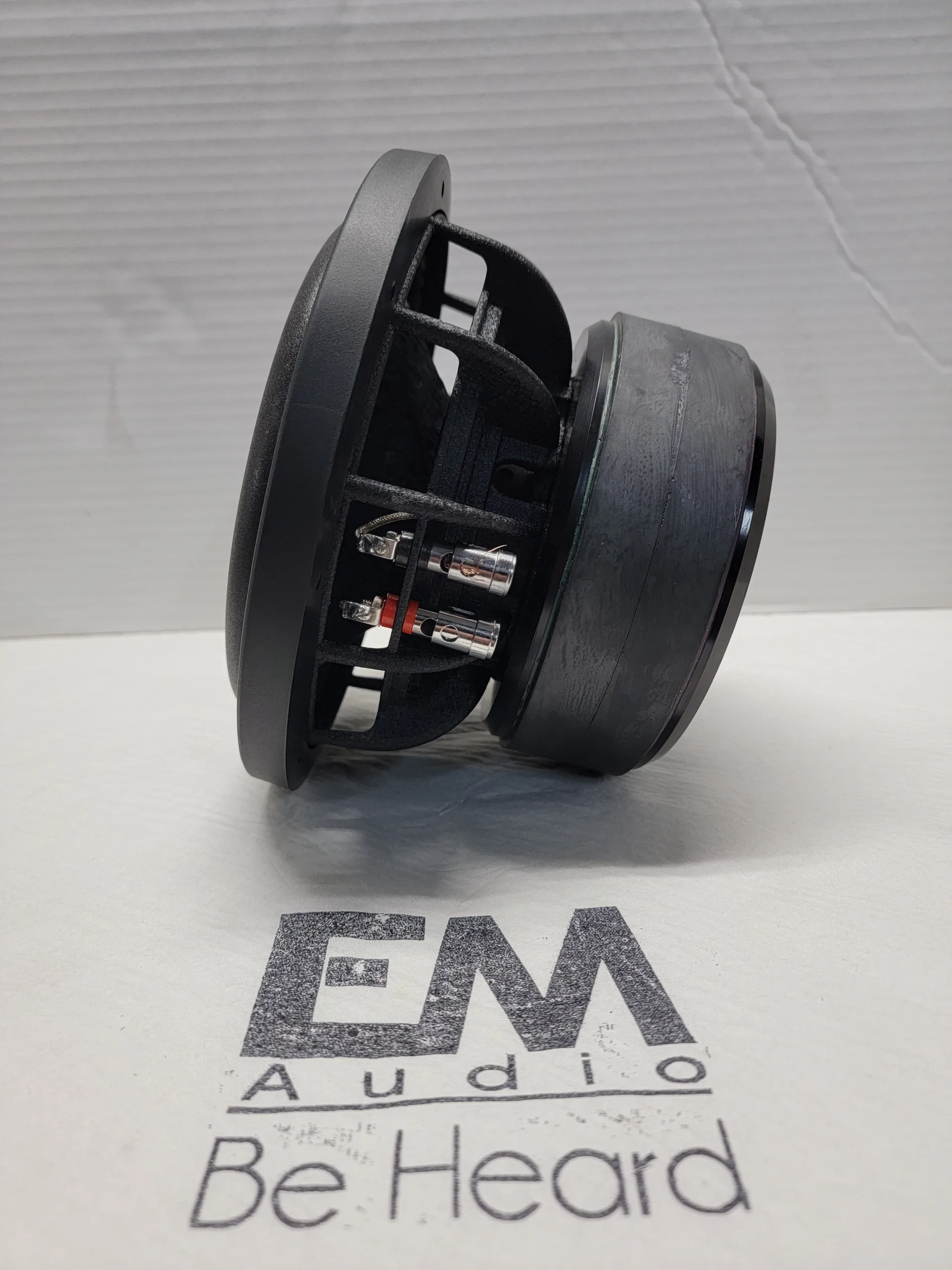

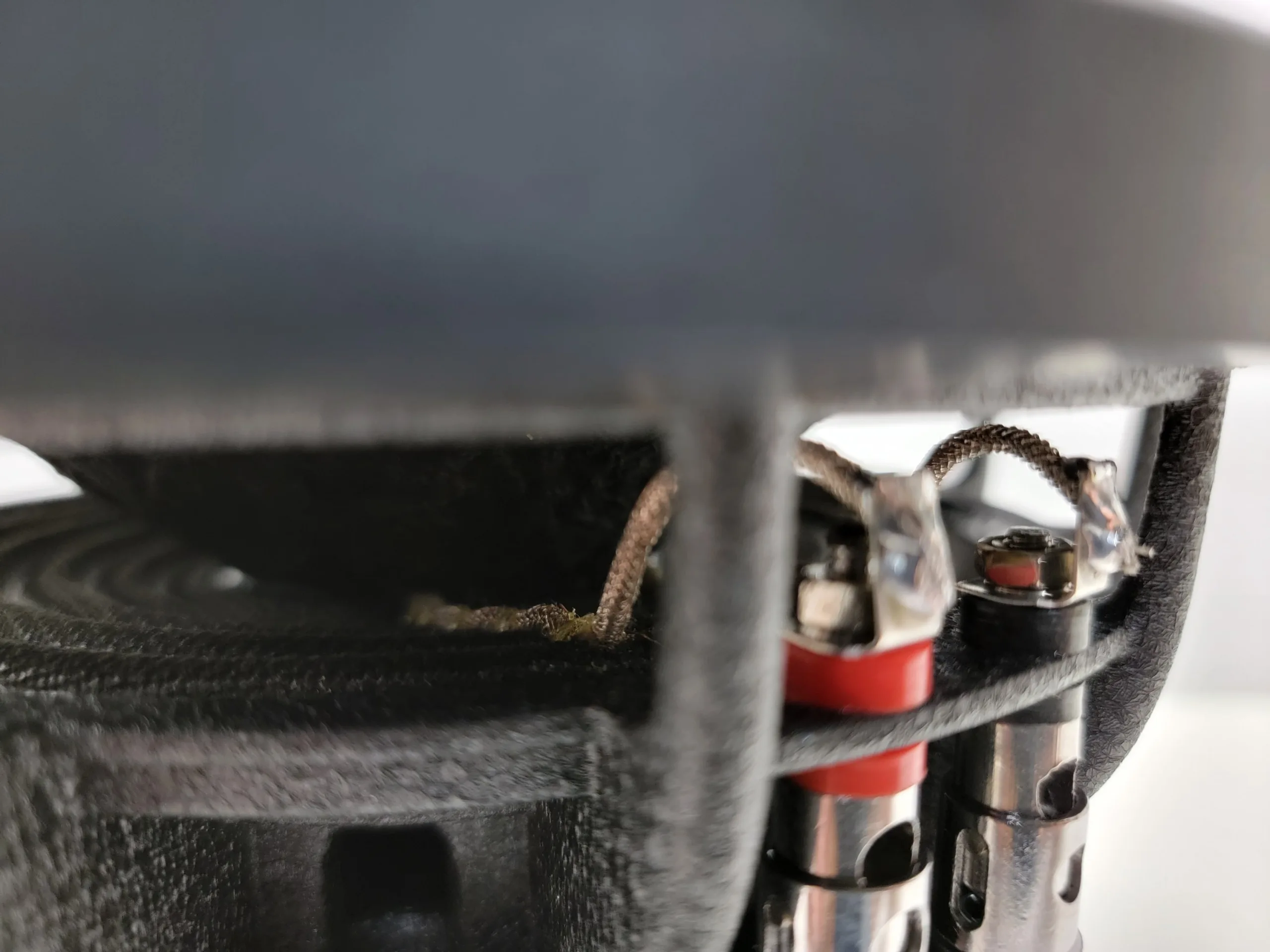

- 0.5″ basket-to-motor spacer sleeves and 8 ga. push terminals

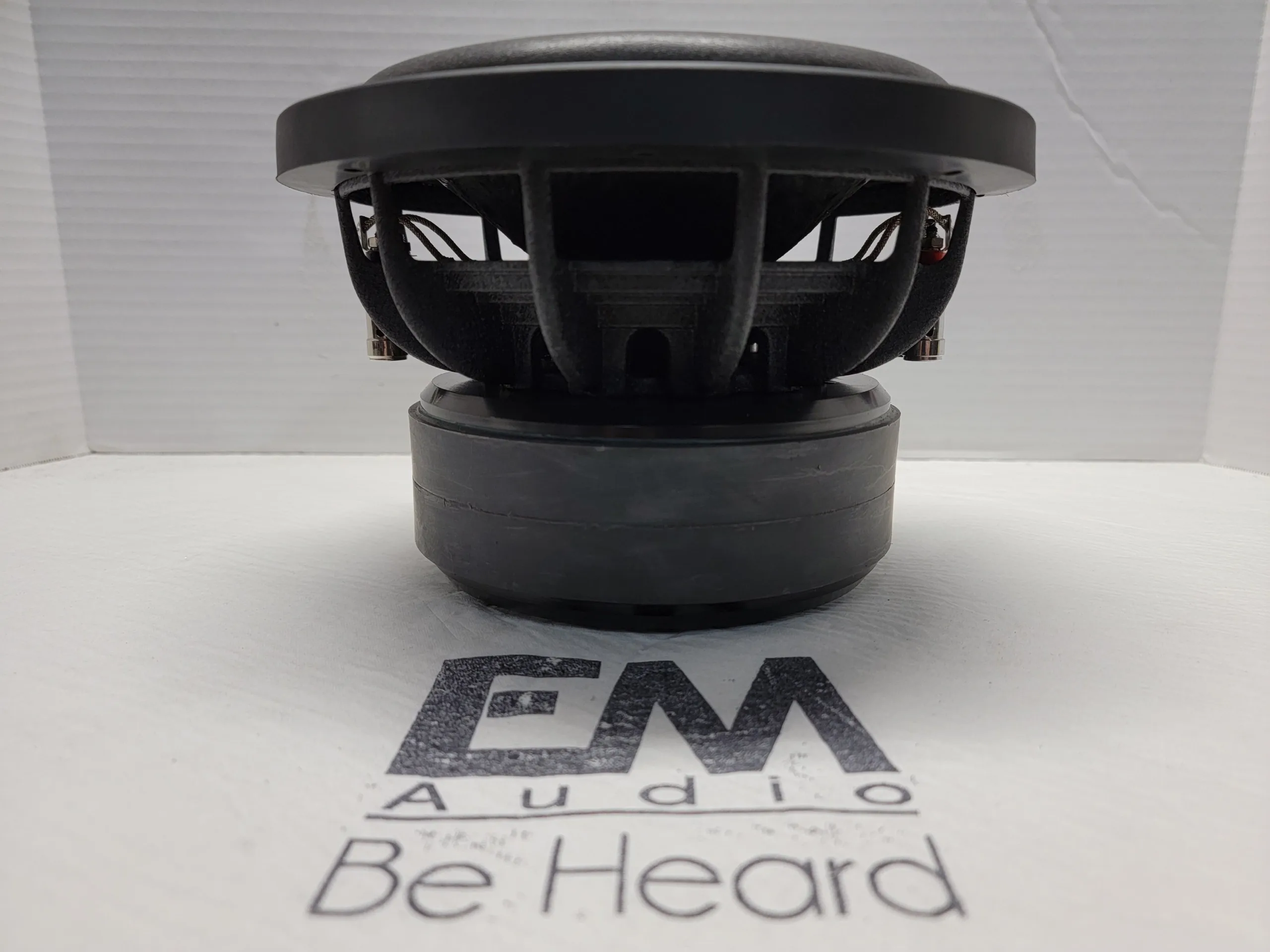

- 6-spoke aluminum basket, powder coated standard gray
Specs
- Mounting depth: 6.375″
- Motor width: 6.625″
- Cutout diameter: 7.325″
- Outside diameter: 8.75″
- Motor weight: 22 lbs
Recommended enclosure
Sealed: 0.5 cu ft. Ported: 0.75–1.0 cu ft, tuned to 36 Hz. 4th and 6th order friendly. These sizes are for rated power. If you compete or run over rated power, work with your box designer, or run the numbers in our box calculator.
Every EM Audio subwoofer is hand built to order in North Carolina. Custom orders take a minimum of 15 business days to build and are final sale. Custom powder-coat frame and dustcap colors, a stiffer spider pack, direct 8 ga. OFC leads and custom dustcap logo text are available as options above. Real carbon fiber dust caps are in Dust Caps. Recone kits are available for every model we make, so a blown sub is a rebuild, not a replacement.
Measured parameters
