10″ Custom hand built subwoofer 5000rms (Team 10)

$970.00 MSRP

Description

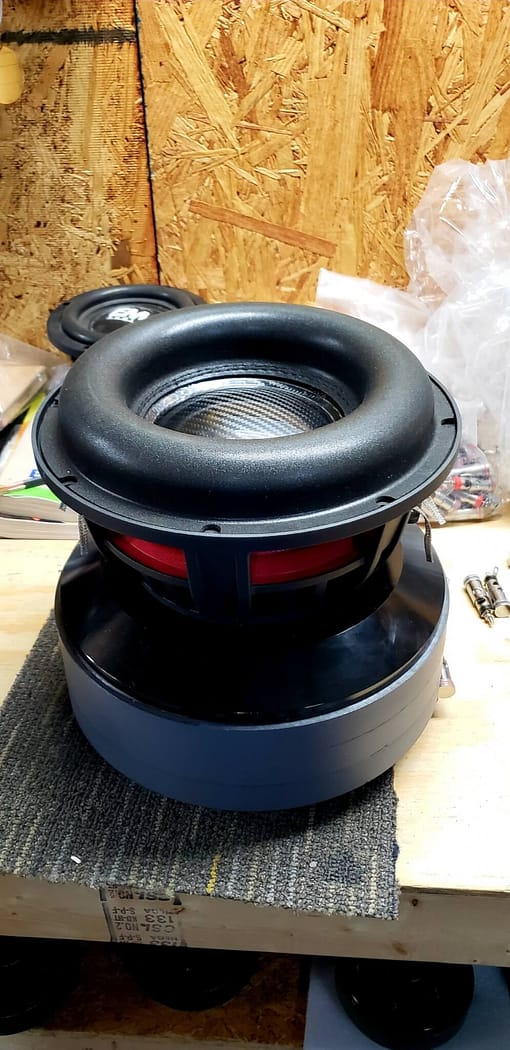

The Team EM audio 10″ is without question the most insane street,daily,SQL or SPL subwoofer ever developed! Every component of this subwoofer was custom designed to deliver the deepest,loudest, and clearest sub-bass available out today. Weighting in over 94lb we added incredible reliability and unbelievable power handling coming in at 5000rms, and 20,000 MAX! the Team EM audio 10″ comes in D2 or D1 Made in the USA coil. These subs was built for efficiency while still having a high amount of xmax daily. We use the latest in Development and technology of softparts goes into all of our subs. Numerous R&D hours went into designing this subwoofer. we use a 11″ wide triple stack y35 low carboin steel motor structure with durable and attractive black powder coat. smooth extended bumped backplate allows for a longer voice coil winding length. 75mm to be exact. A mult 5 layer 10″ suspension was used to keep everything align during extreme high excursion. Pole vent cooling was added to keep pressure off the dust cap on high excursion. And perimeter rear direct coil cooling to help keep this beast cooled during high power handling. The powerful magnet assembly we use assures high flux concentration. The ventilated basket designed between the spider and magnet structure significantly improves thermal connection and heat dissipation, further increasing power handling and lowering power compression. This driver is capable of high output and low distortion, which is unheard of in these off the shelf brands. A newly designed Mega roll stitched surround are now used in our Team line. A 650oz motor that was designed to have extreme motor force backed by some of the best softparts available today, makes this team line something to reckoned with! Want to Be Heard? Or out do your friends? Piss off the town? This is the sub for you! Get you one today before its to late! The Team 5k is a top pick for extreme level SPL and daily ground pounder enthusiast!

*spilt baffle or inverted mount only*

(Motor is wider then basket at 11.0″)

5,000w rms consecutively rated, 20,000w burps!

10″ Ti frame gray is standard (different colors optional upgrade)

over 2.5″ of xmax (30mm 1-way)
Mega roll surround
black poly dust cap with 2-tone logo (real carbon fiber dust cap optional upgrade)
8.5″ progressive spiders 5-layer (stiffer optional upgrade)
triple Xl flat oversized leads
4″ 75mm 8-layer American made PE coil
4ga. push termials (direct 8ga. ofc leads optional upgrade)
stainless steel hardware and lock washers bolt this Beast togeher
650oz black triple stack 1″ thick slugs and 11″wide motor ***inverted or split baffle mount only do to the motor being wider then the basket***

Mounting Depth: 9.25″

Motor Width: 11.0″

Cutout diameter: 9.25″

outside diameter: 10.5″

Motor weight 90lbs

Box requirements:

1.5cu sealed (for sq use only)

1.75-2.0cu. ported to 35hz

*4th order and 6th order friendly *

*We recommend you Get with your favorite box designer.
