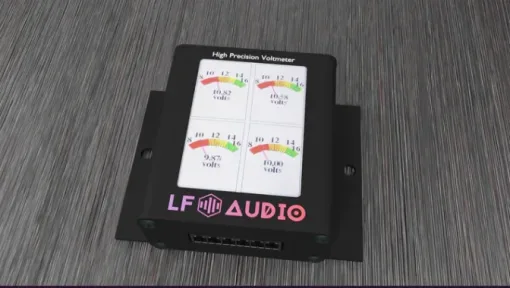

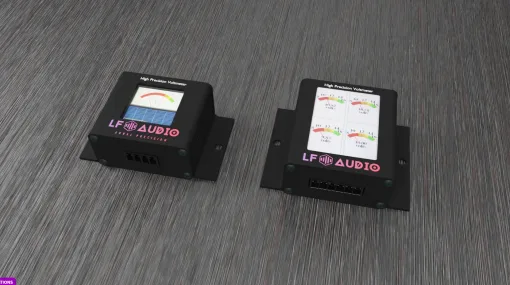

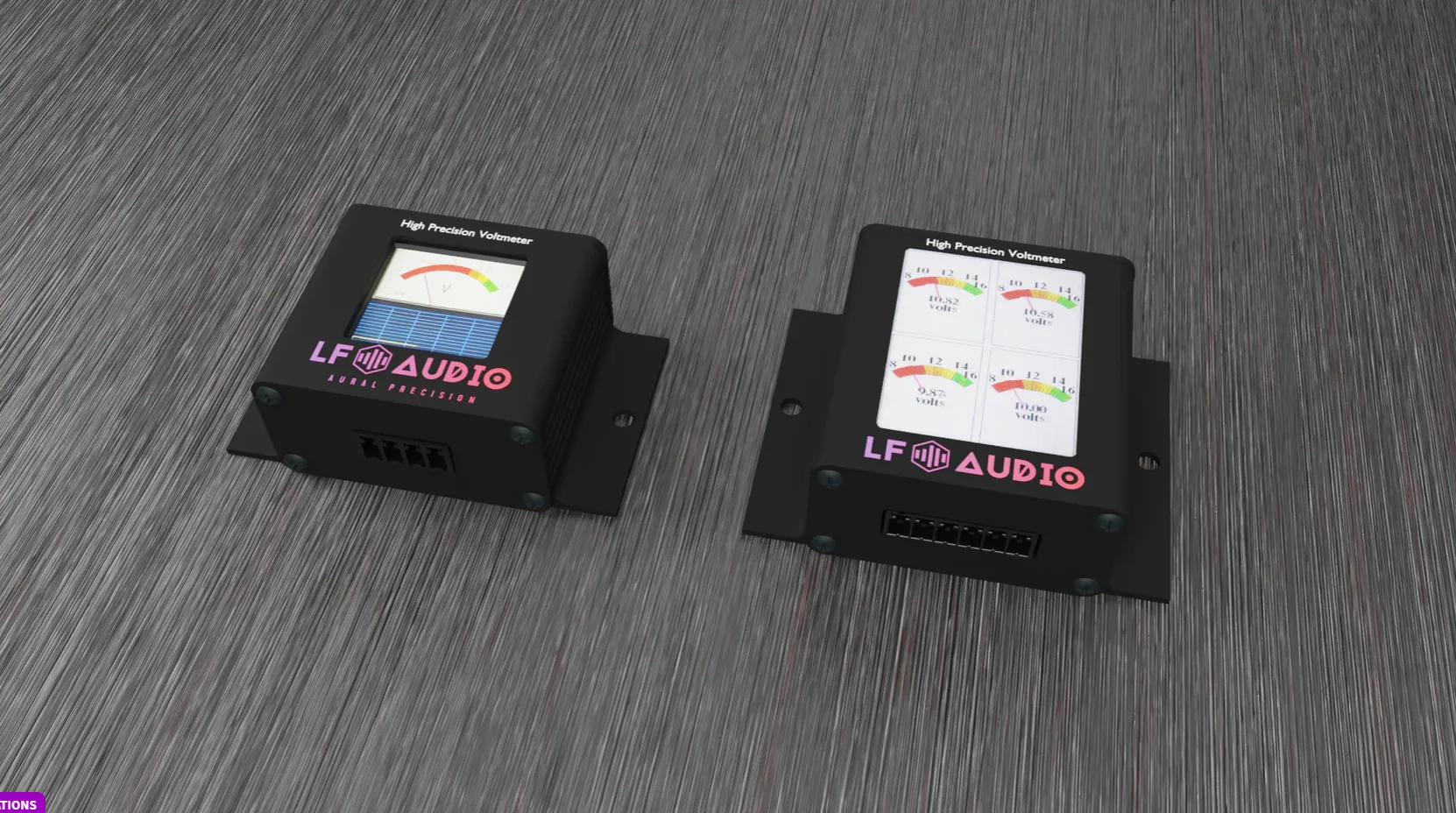

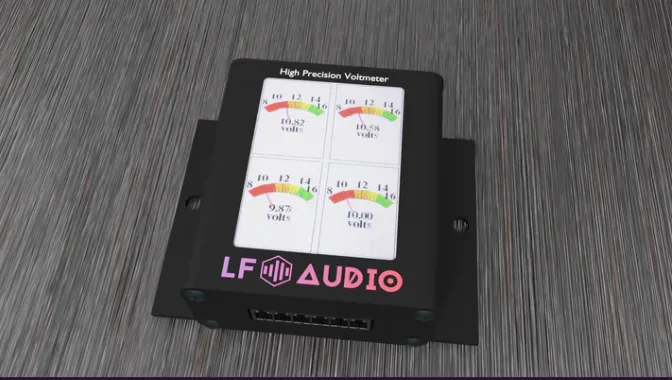

High Precision Voltmeter – Pro (HPVM-PRO)
Meet the HPVM PRO (High Precision Voltmeter) – our bigger version of the most precise, fastest sampling, smart wireless voltmeter designed for both automotive and car audio enthusiasts.
Voltage, whether you’re using it to create a spark to create combustion, inverting it to drive an electric motor, or pushing it into your amplifier to move a speaker cone to create sound, is critical in your car. Low voltage creates heat, stresses components, limits output, can affect sound quality, and even leave you stranded (if you don’t have enough of it). Make sure your voltage is always on point with the best tool for the job!
The HPVM is a high-precision wireless graphing voltmeter with 99.99% accuracy / up to 3 decimal places of precision (e.g., 15.234v), and can monitor up to 4 individual voltage points! See the voltage sag between your alternator, front battery, lithium bank, and your amp to ensure your electrical resistance is dialed in and on point!

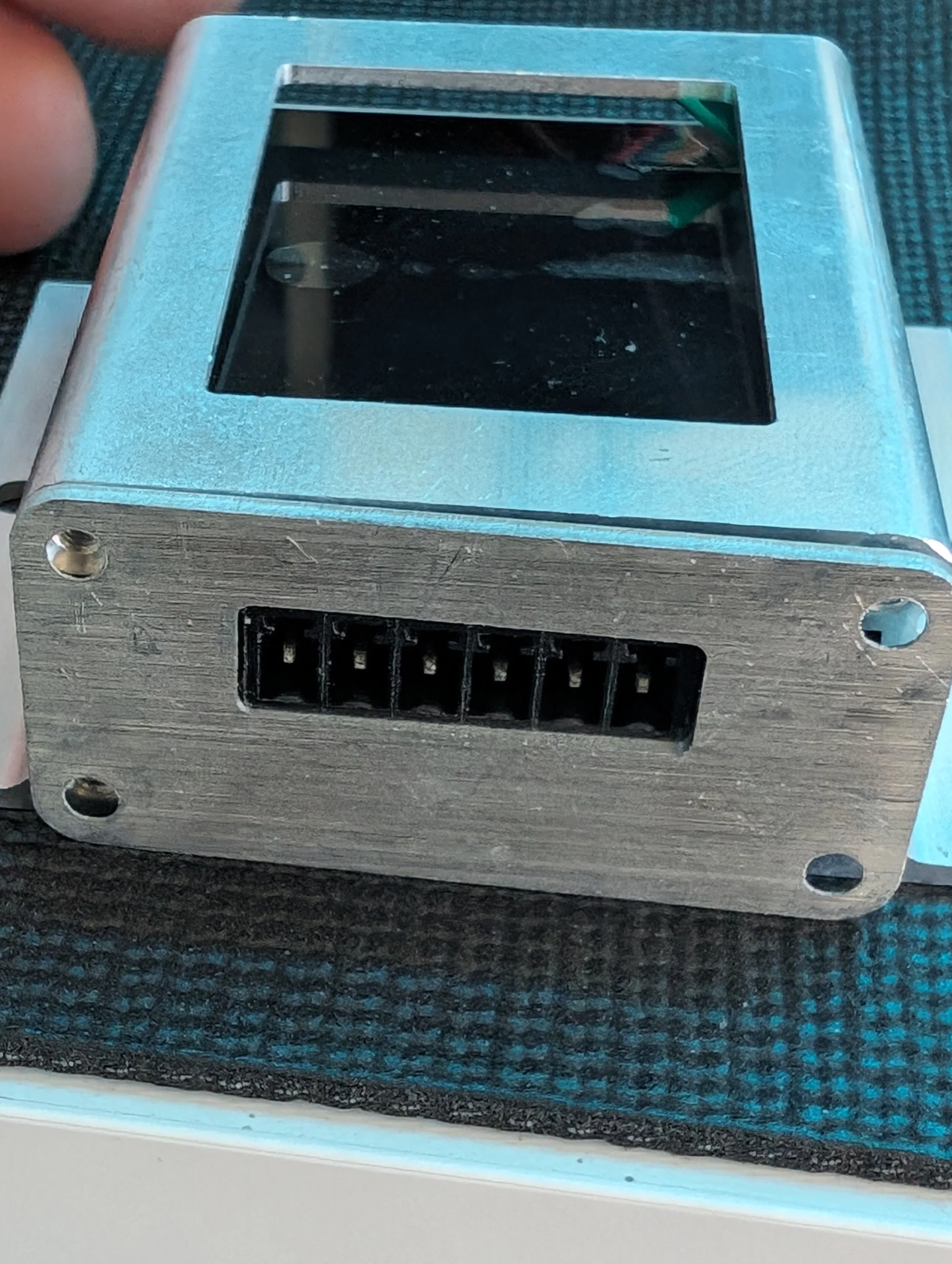

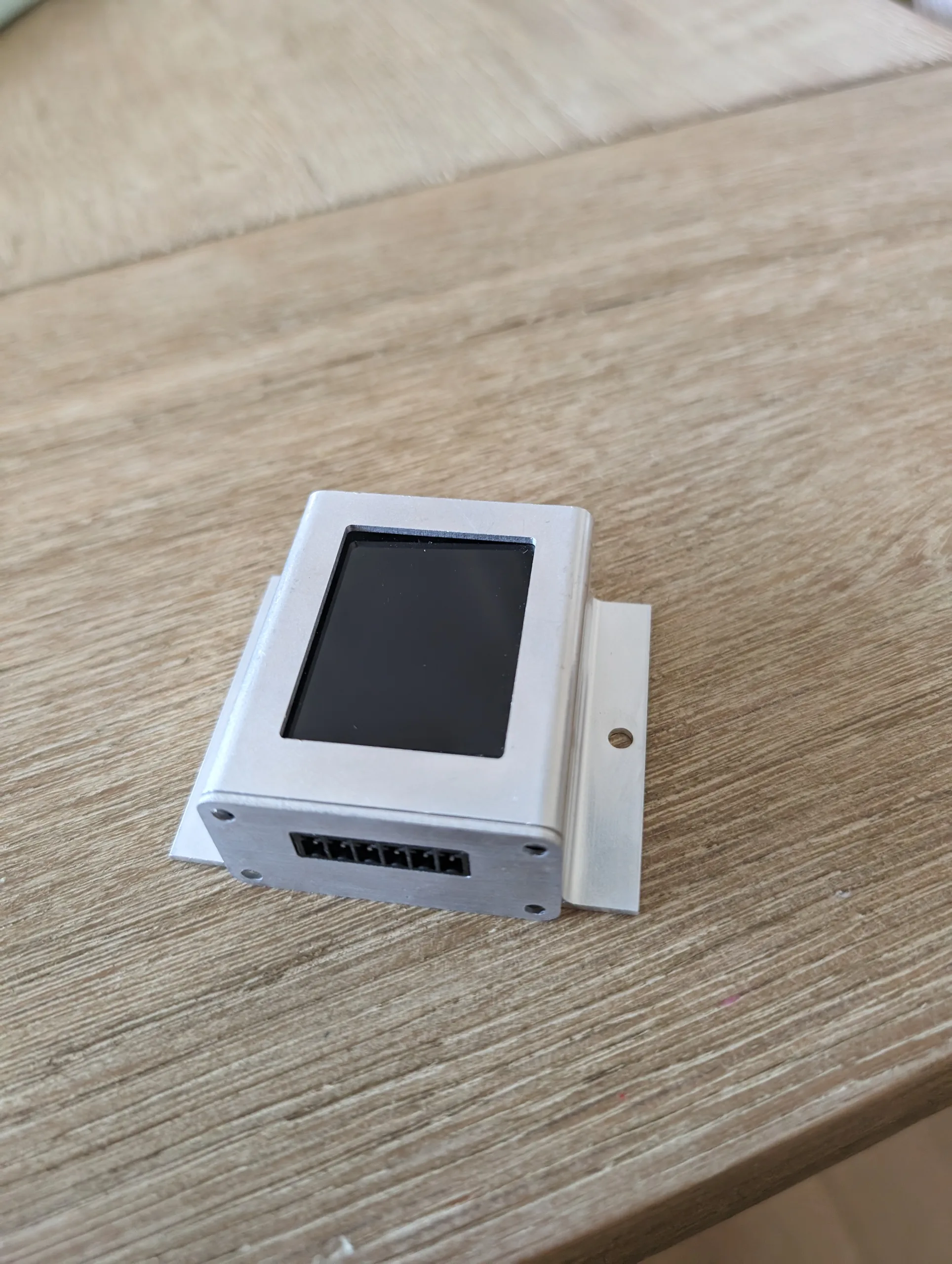

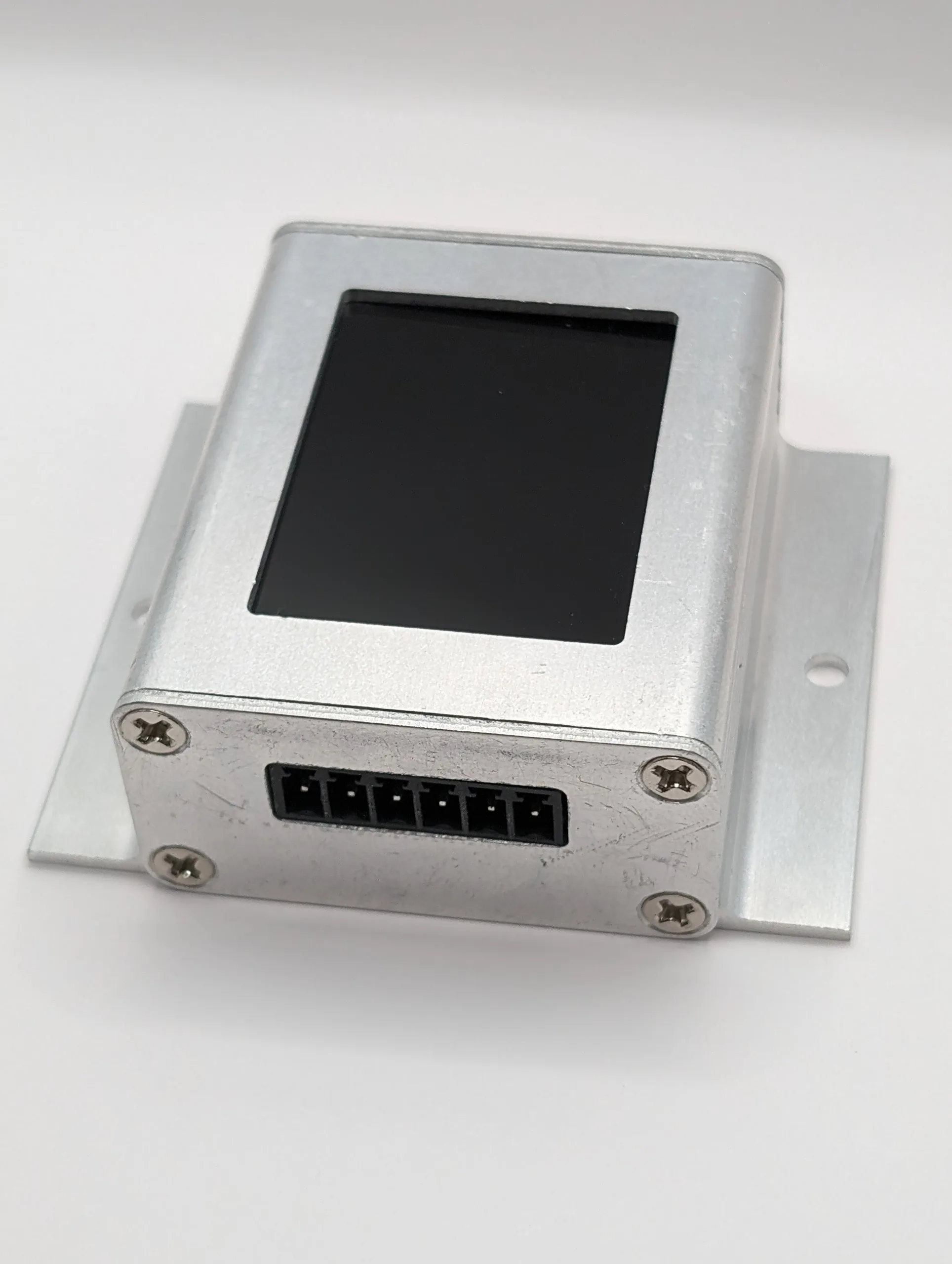

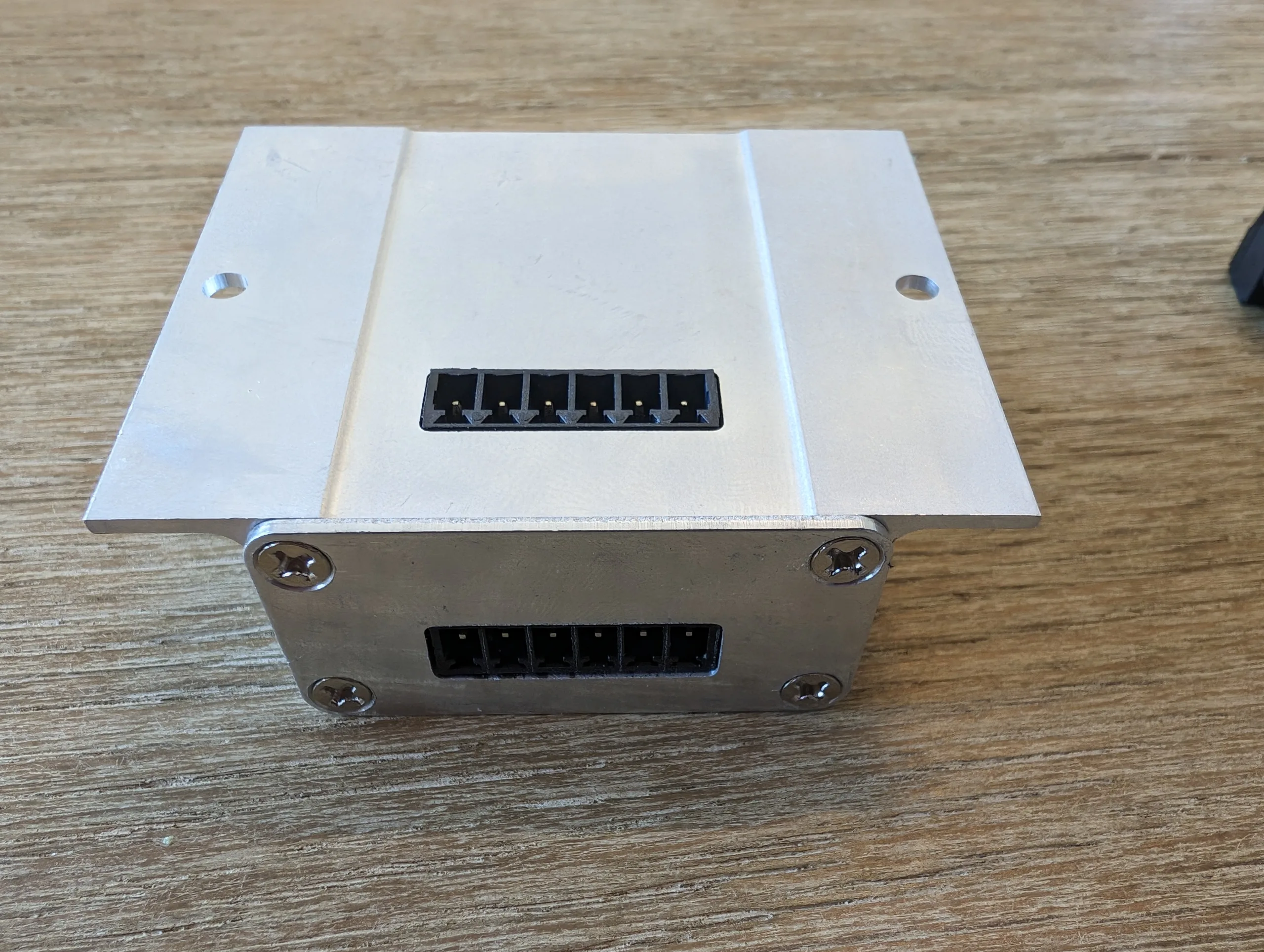

The HPVM pro is physically overbuilt with a solid aluminum case, high-density/temperature internal supports, and gold-plated ENIG PCB to survive the loudest and most violent builds.
Onboard AuralSync™ technology lets you connect the voltmeter to your smartphone, our AuralSync Companion Smartwatch, and other LF Audio AuralSync™ enabled devices.
For instructions on connecting your HPVM, updating firmware, using the app, and more, please see our getting started page.
|Individual Voltage Monitoring Points
|Voltage Measurement Range
|99.99% accurate (+/- 0.002v)
|1mV – 3 decimal places (e.g. 15.234v)
|330 samples per second
|2.0″ diagonal TFT HD IPS LCD – 240×320 pixels / 65k color
|Visual Refresh rate
|40mm x 73mm x 26mm -1.6″ x 2.87″ x 1″
|Use our LF Audio AuralSync™ smartphone app or AuralSync Companion smartwatch to change settings on the unit.
|Over The Air (OTA) firmware updates
|Use our LF Audio AuralSync™ smartphone app to check for and apply firmware updates
