Subwoofers hand built to order in the USA

EM 6.5 – 6.5″ 300W RMS Subwoofer

(1 customer review)

$189.00

Pay over time

Or 4 interest-free payments of $47.25 with Afterpay.

Lease-to-own with Snap Finance on carts of $300 or more.

Compare options — which one fits me?
AffirmMonthly payments (a loan). Rates from 0–36% APR, 0% on some plans. Checking if you qualify won’t affect your credit score.
At checkout on carts $50–$30,000.
AfterpayPay in 4 interest-free payments of about $47.25, every 2 weeks. First one at checkout.
Carts up to $4,000.
Snap FinanceLease-to-own for credit-challenged shoppers. Not a loan; leasing costs more than paying cash, early payoff lowers the total.
Carts $300–$5,000 — add a sub, box or wiring to reach it.

Pick your plan at checkout. All plans are subject to approval by the provider. More about financing

Payment plans are hidden.

-

Design my box for this sub →Free enclosure advisor — sealed or ported volume, tuning, slot or aero ports, response curve and a cut sheet for your vehicle.

Measured T/S Fs 51.81 Hz·Qts 0.492·Vas 2.1 L All specs →

6.5″ subwoofer rated 300W RMS and 2,000W on burps (proven clamped power). Dual 4 or dual 2 ohm, 55 oz single-slug motor. Works in tight spaces. Recones available.

Out of stock

SKU: EM6_5v1 Categories: , Tags: ,

Description

The EM 6.5 is our compact subwoofer for spaces a normal sub will never fit. A 55 oz single-slug motor with a super bumped backplate and a 2″ American-made copper coil give it 300W RMS of real power handling and 2,000W on burps (proven clamped power), with a tall roll stitched surround and a stitched-in single lead for durability. If you want real bass in a tight spot, this is the sub.

Highlights

  • 300W RMS rated; 2,000W on burps (clamped)
  • 2″ American-made copper coil, dual 4 or dual 2 ohm
  • 55 oz single-slug motor with a super bumped backplate
  • 5.39″ × 2″ spider with a single lead stitched in
  • Tall roll stitched surround

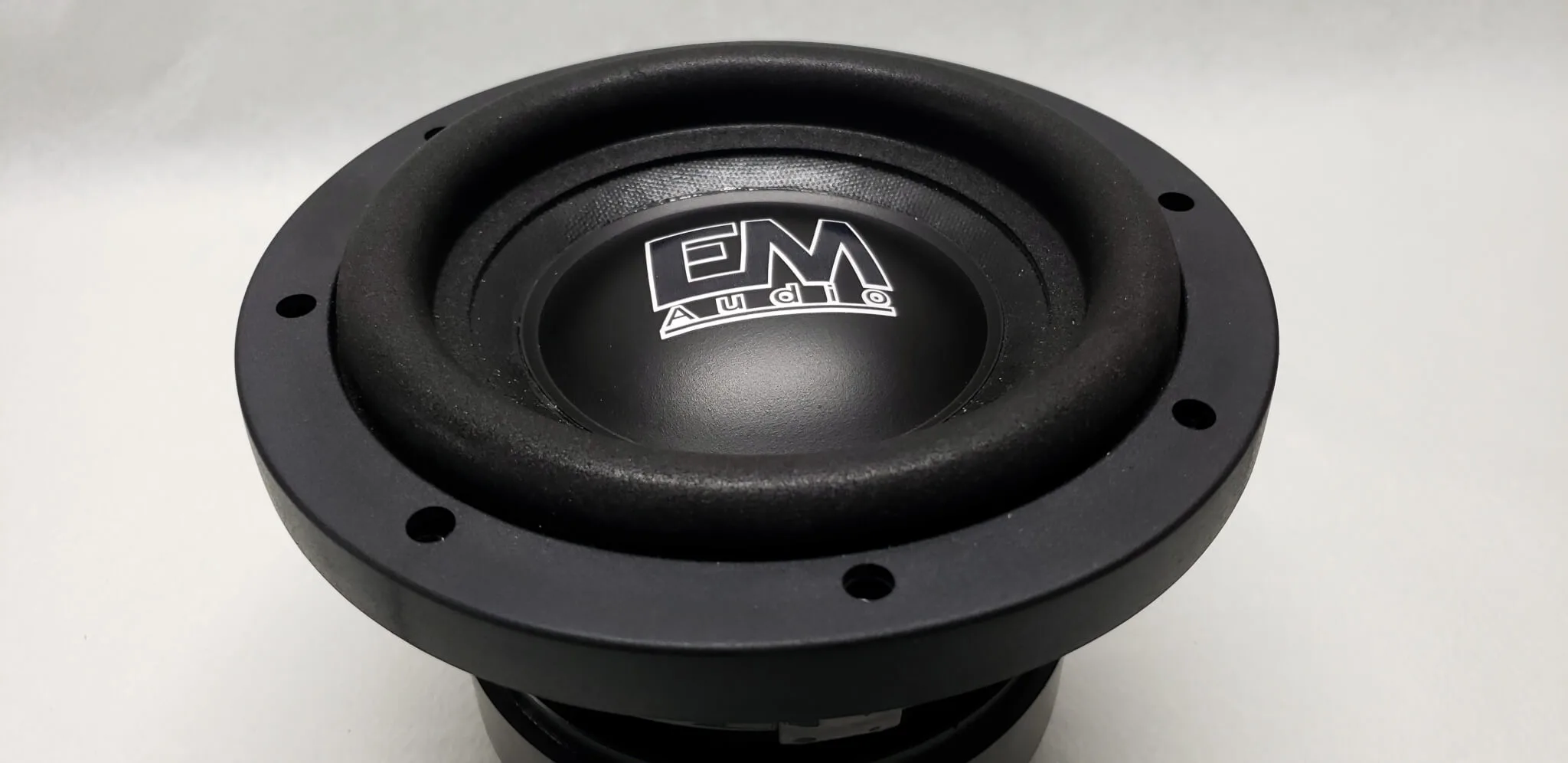

  • 3.5″ black poly dust cap with 2-tone EM Audio logo

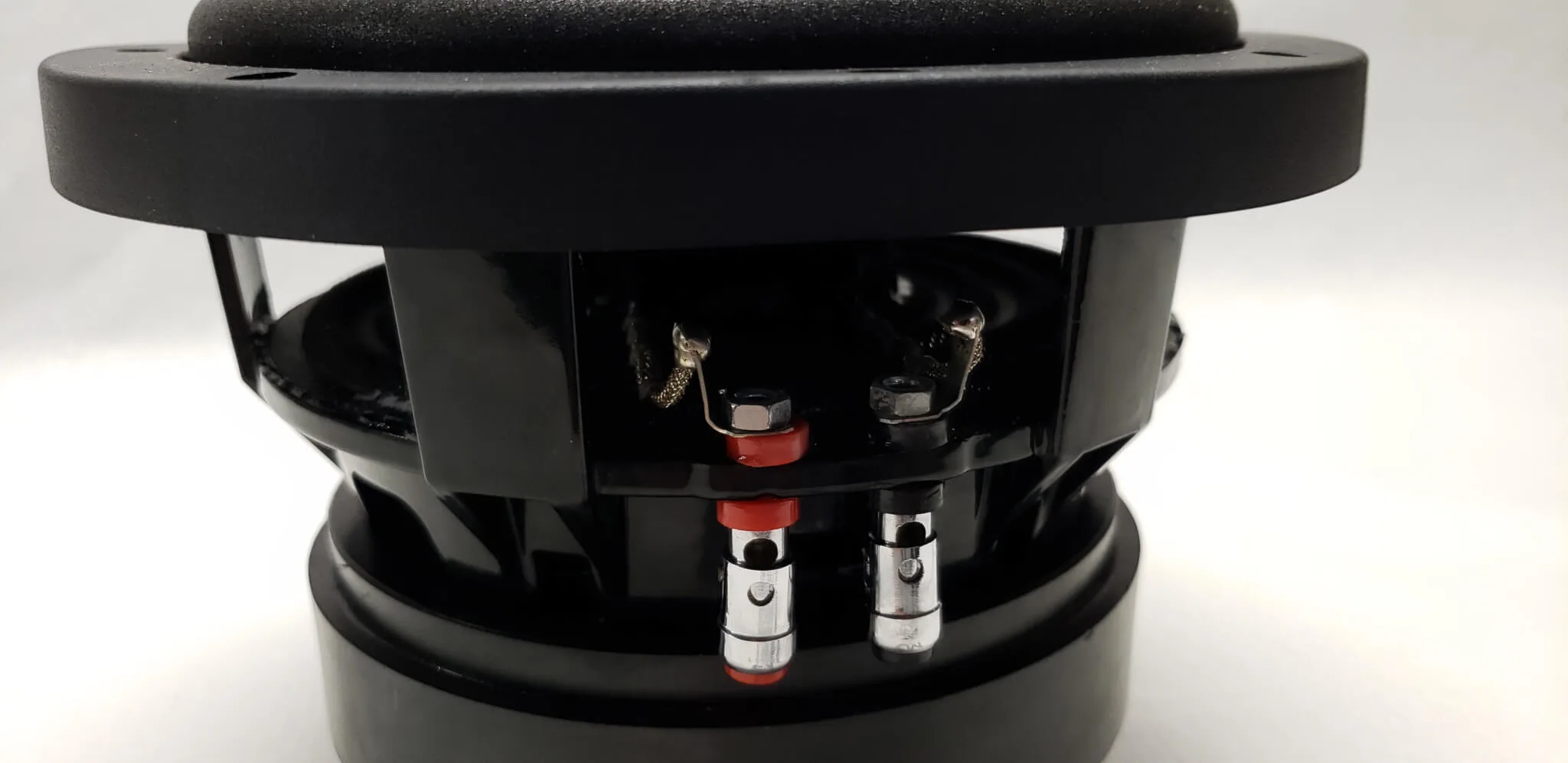

  • Aluminum basket, 14 ga. push terminals, stainless hardware and lock washers

Specs

  • Mounting depth: 4.375″
  • Motor width: 5.375″
  • Cutout diameter: 5.90″
  • Outside diameter: 7.08″
  • Motor weight: 8.6 lbs

Recommended enclosure

Sealed: 0.3 cu ft. Ported: 0.4 cu ft, tuned to 39 Hz. 4th and 6th order friendly. These sizes are for rated power. If you compete or run over rated power, work with your box designer, or run the numbers in our box calculator.

Every EM Audio subwoofer is hand built to order in North Carolina. Custom orders take a minimum of 15 business days to build and are final sale. Custom powder-coat frame and dustcap colors are available as an option above. Real carbon fiber dust caps are in Dust Caps. Recone kits are available for every model we make, so a blown sub is a rebuild, not a replacement.

Measured T/S parameters

Fs 51.81 Hz
Qts 0.492
Qes 0.547
Qms 4.876
Vas 2.1 L (0.074 cu ft)
Re 3.9 Ω
Le 1.617 mH at 10 kHz
BL 15.33 T·m
Mms 101.2 g
Cms 0.09 mm/N
Sd 127 cm² (5″ piston diameter)
Sensitivity 79.17 dB 1W/1m · 82.29 dB 2.83V/1m

Measured in free air on a Dayton Audio DATS with the coils wired as tested (see Re). Treat these as a starting point: every sub is hand built, and upgrades change the numbers. A stiffer spider pack raises Fs, and carbon fiber upgrades lighten the moving assembly, which also raises Fs and lowers Qts. Run them through our box calculator, or ask us for numbers on your exact build.

EM 6.5 measured Thiele/Small parameters

Additional information

Weight 21 lbs
Dimensions 15 × 15 × 12 in

1 review for EM 6.5 – 6.5″ 300W RMS Subwoofer

  1. blank

    Chris –

    Great product

Add a review

Your email address will not be published. Required fields are marked *

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Running the EM 6.5? Put your build on the EM wall with photos, your box and your numbers.

Add my build
