Description

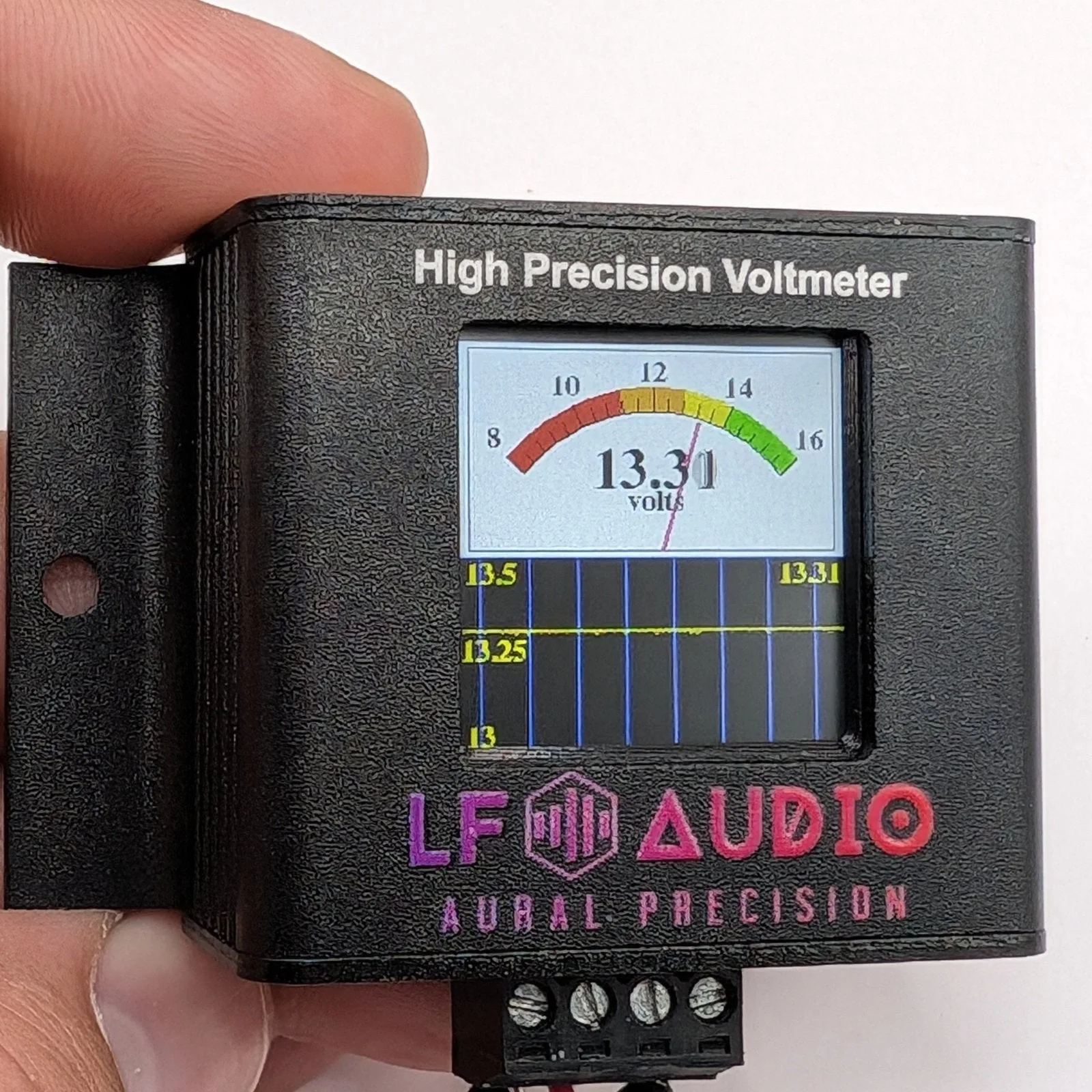

HPVM Voltage Meter
- Precision volt meter for automotive and car audio
- 1.3-inch LCD with 65,000 colors
- Monitors two sources at once
- Measures up to 18 volts
- A gauge face for every style, with sharp numbers and smooth dials
- Competition face holds the lowest voltage of each hit
- Bluetooth-enabled connection with free AuralSync™ app
Your Style. Our Precision.
The HPVM is the most versatile graphing volt meter available today. Accurate to 1/500 of a volt and capable of measuring two sources simultaneously, the HPVM comes equipped with Bluetooth connectivity, allowing it to connect to the free AuralSync™ app, optional AuralSync Companion Smartwatch, and other AuralSync-enabled devices.

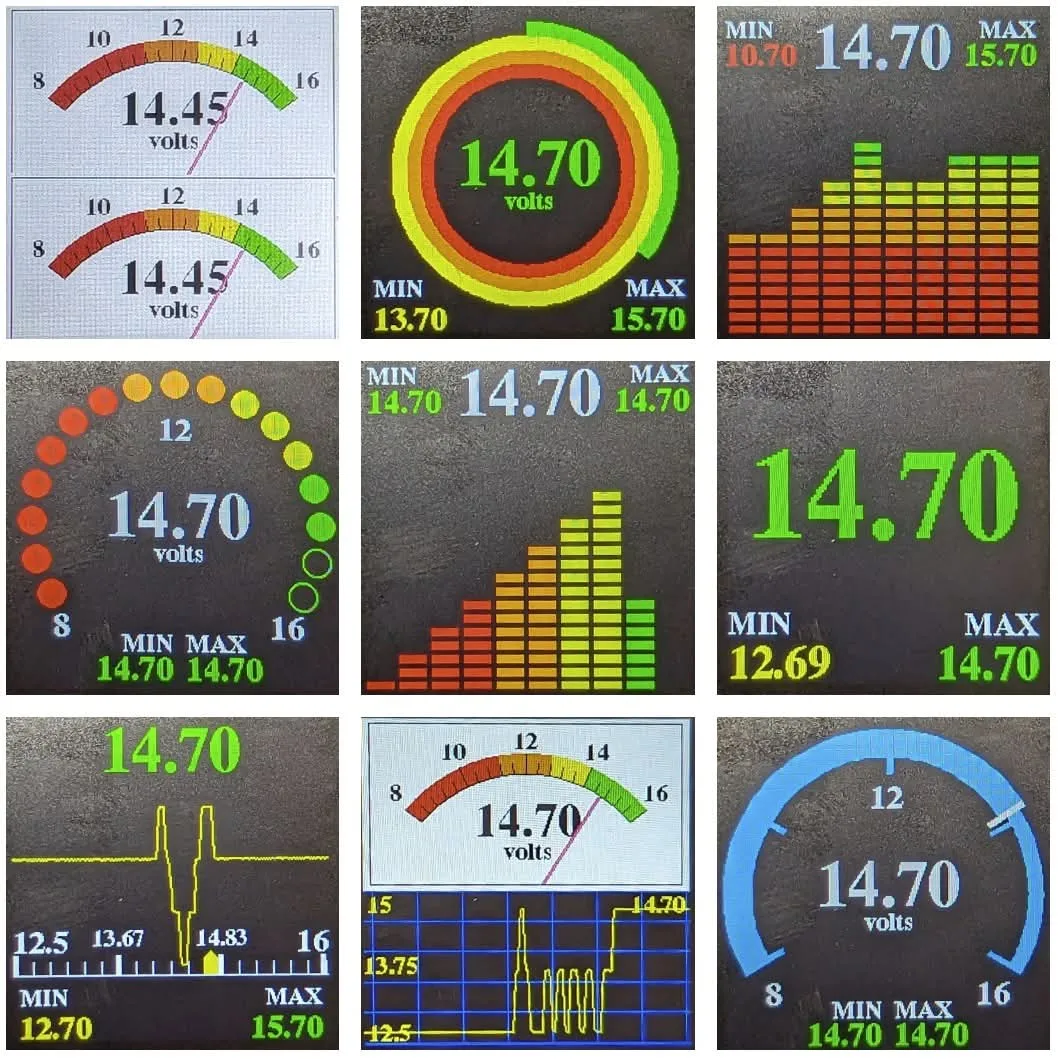

Pick your gauge face in the free AuralSync™ app. See each face live, just as it looks on your meter. Then set your own voltage ranges and colors.
Want big numbers, a dial or a graph? Take your pick. The Sag face shows how far your voltage drops under load. The Wire Loss face shows how much voltage your wiring loses. The Night face uses dim orange numbers for driving after dark.
Made for Competition
The Competition face shows your live voltage. On every hit, it holds the lowest voltage on screen. It stays up long enough to read.
Tune it in the app on your own live voltage. Choose how big a drop counts as a hit. Choose how long the low stays up. Reset it with a tap.
Easy Settings in the App
Every meter setting sits on three tabs: Face, Voltages and Meter. Set your gauge range, color zones and sleep voltage on one live scale. Calibrate the meter to your own multimeter in a few steps.

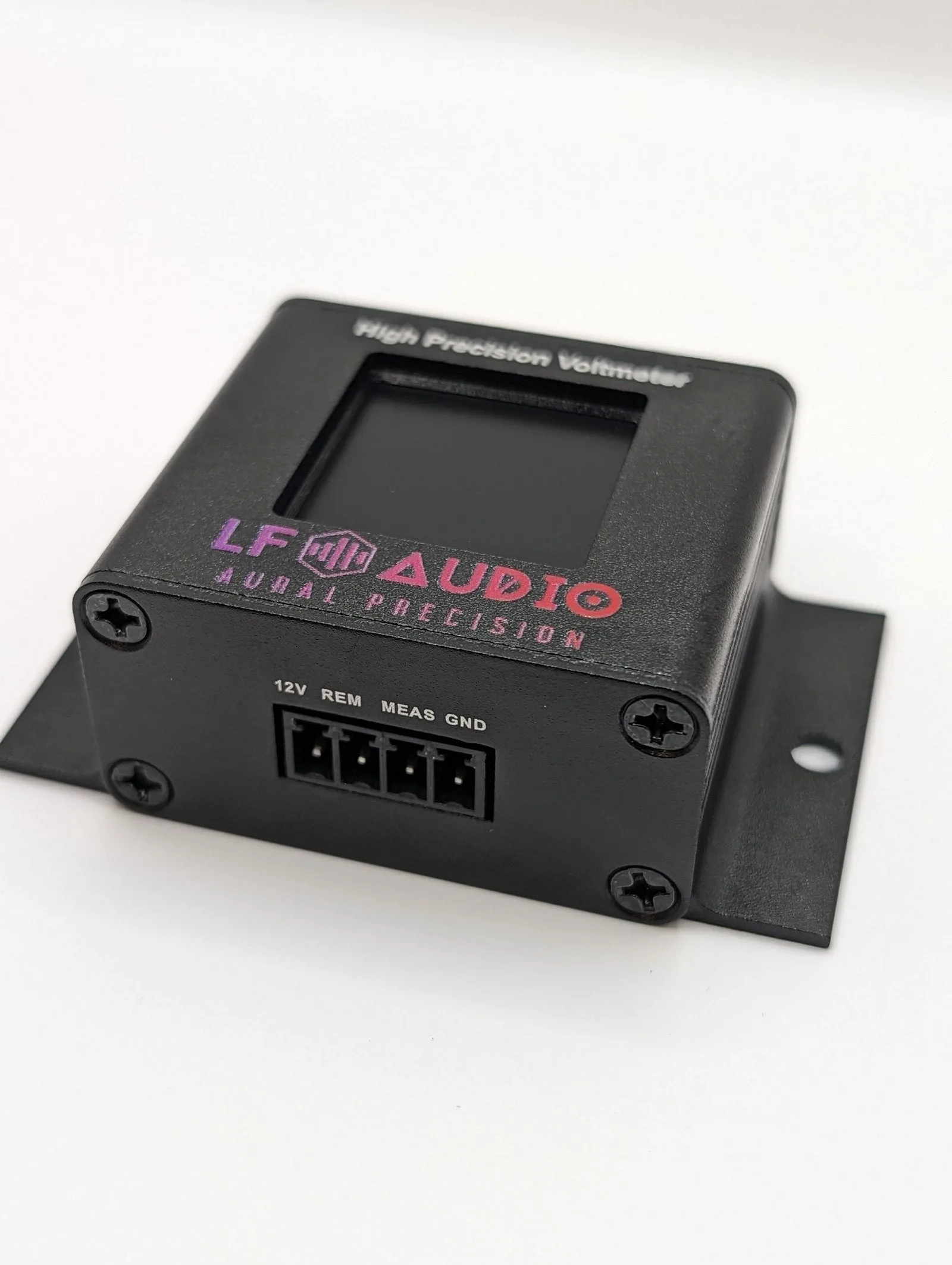

Built To Last
Extremes in vibration, humidity, and temperatures are always attacking everything in your vehicle. A solid aluminum case houses high-density/temperature internal supports, and gold-plated ENIG PCB to survive, and thrive, in any build.
Maximum Battery Efficiency
To save your battery power, the HPVM is equipped with Deep Sleep mode. When a gradual voltage drop with no transients is detected, the meter automatically reduces power consumption to just 167 milliwatts. At that rate, it would take 7,059 hours (294 days) to fully drain a 100 amp hour 12V AGM battery.
Once the meter detects a voltage spike, it instantly returns to full operation. It will also display total battery drain during low-power mode and issue a bright red warning if the voltage drop was significant, signaling a weak battery or excessive parasitic draw.
For instructions on connecting your HPVM, updating firmware, using the app, and more, please see our getting started page.
Features
| Supply Voltage | 4v-18v |
| Individual Voltage Monitoring Points | 2 |
|
Voltage Measurement Range |
1v-18v |
| Accuracy | 99.99% accurate (+/- 0.002v) |
| Precision | 1mV – 3 decimal places (e.g. 15.234v) |
| Sample Rate | 320 samples per second per channel |
| Display | 1.3″ diagonal TFT HD IPS LCD – 240×240 pixels / 65k color |
| Visual Refresh rate | Up to 33 FPS |
| Power Consumption | ~460mW full power mode ~167mW in deep sleep move |
| Settings | Use our LF Audio AuralSync™ smartphone app or AuralSync Companion smartwatch to change settings on the unit. |
| Over The Air (OTA) firmware updates |
Use our LF Audio AuralSync™ smartphone app to check for and apply firmware updates |

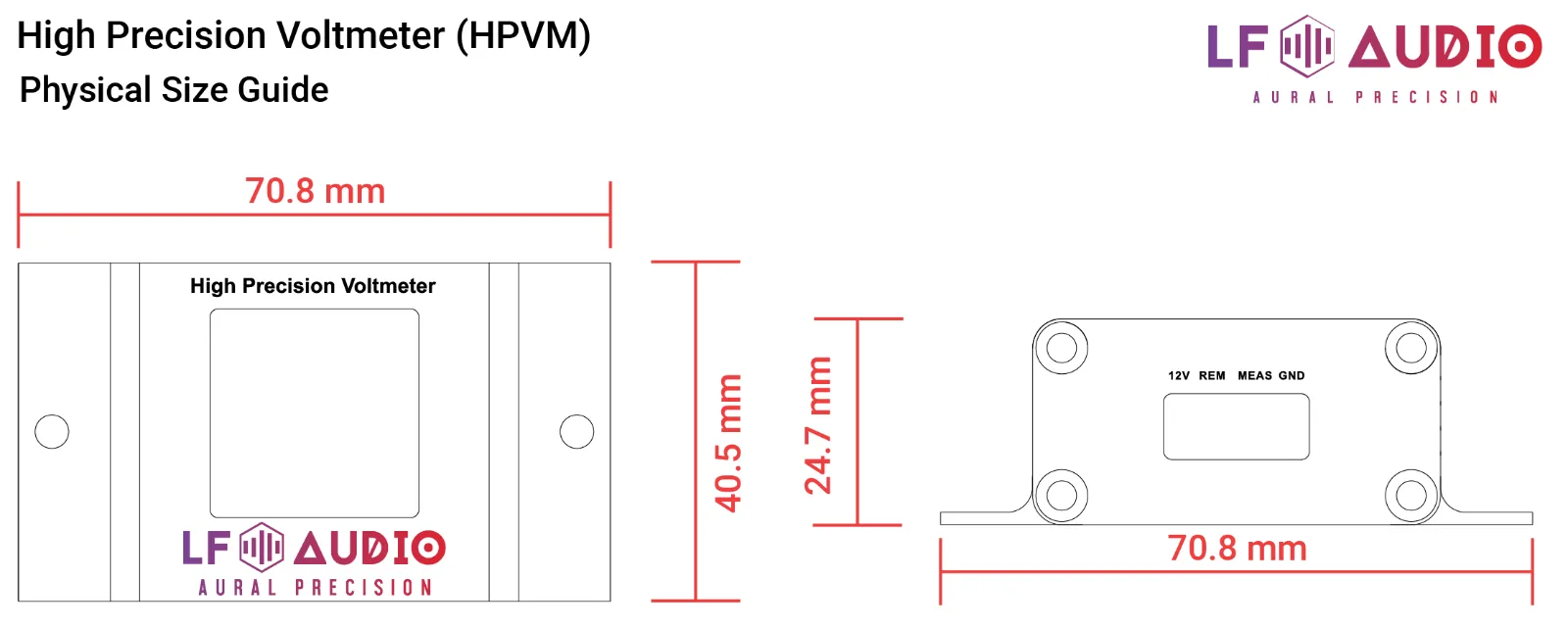

Physical Info
| Size | 71mm wide x 44mm deep x 25mm tall |
| Weight | 2.3oz |

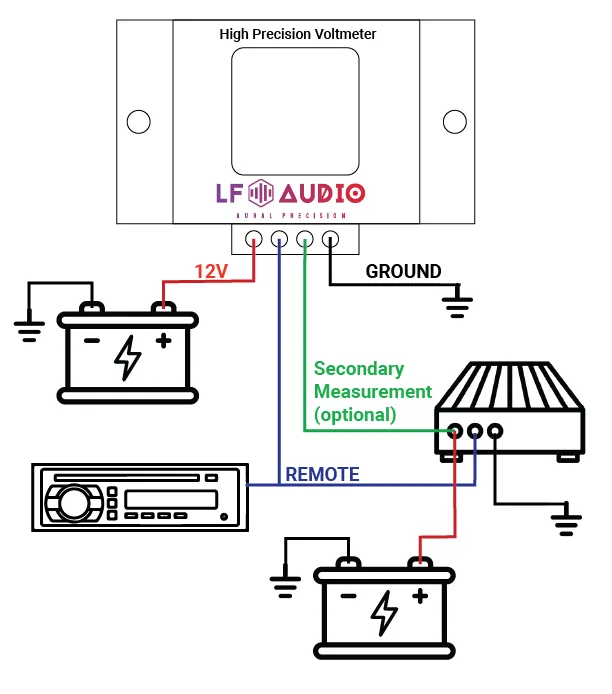

Getting started / wiring instructions
Certifications
📖 Documentation
Full user guides, installation videos, and troubleshooting at help.lf-audio.com/hpvm:
