Description

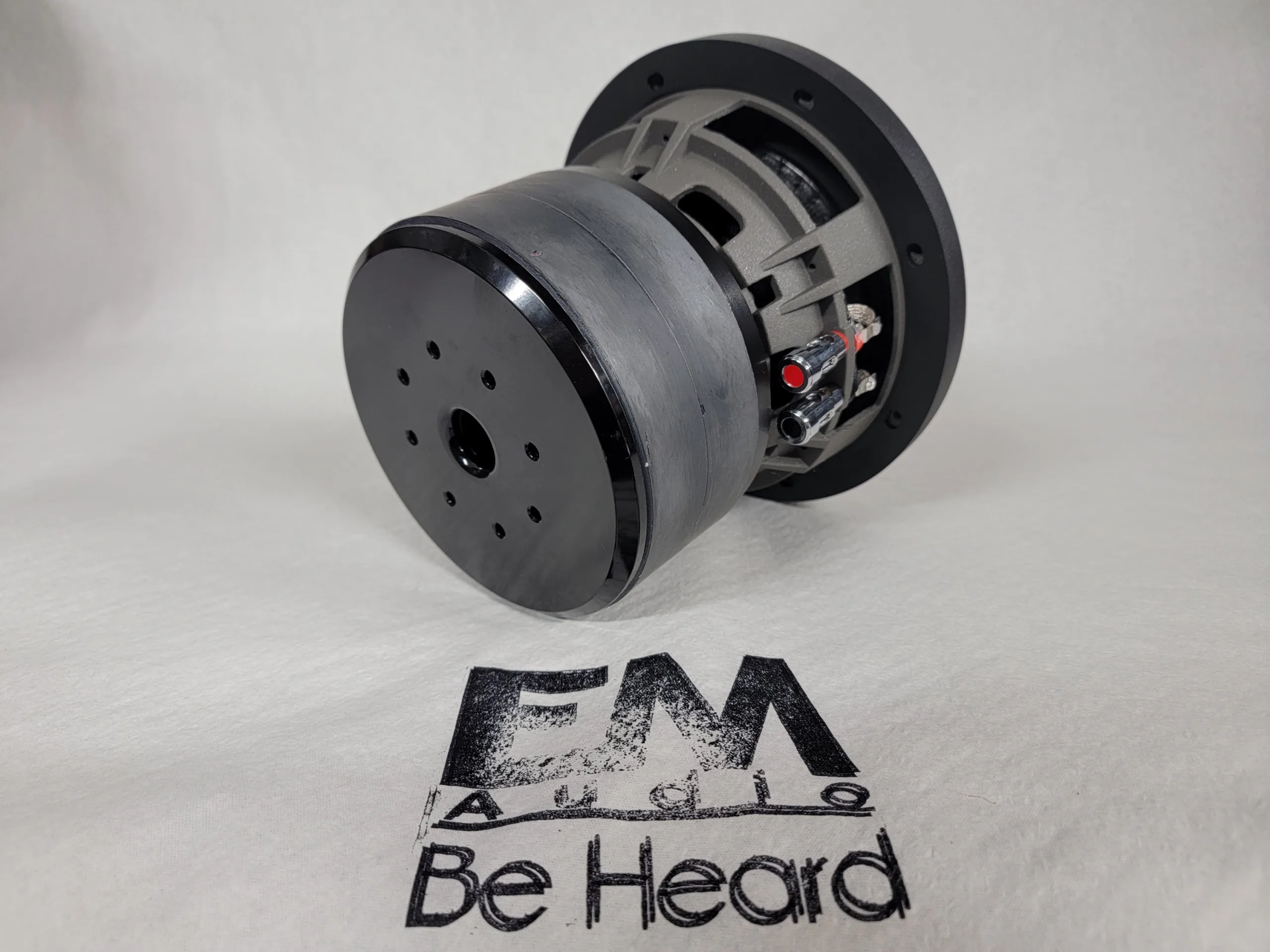

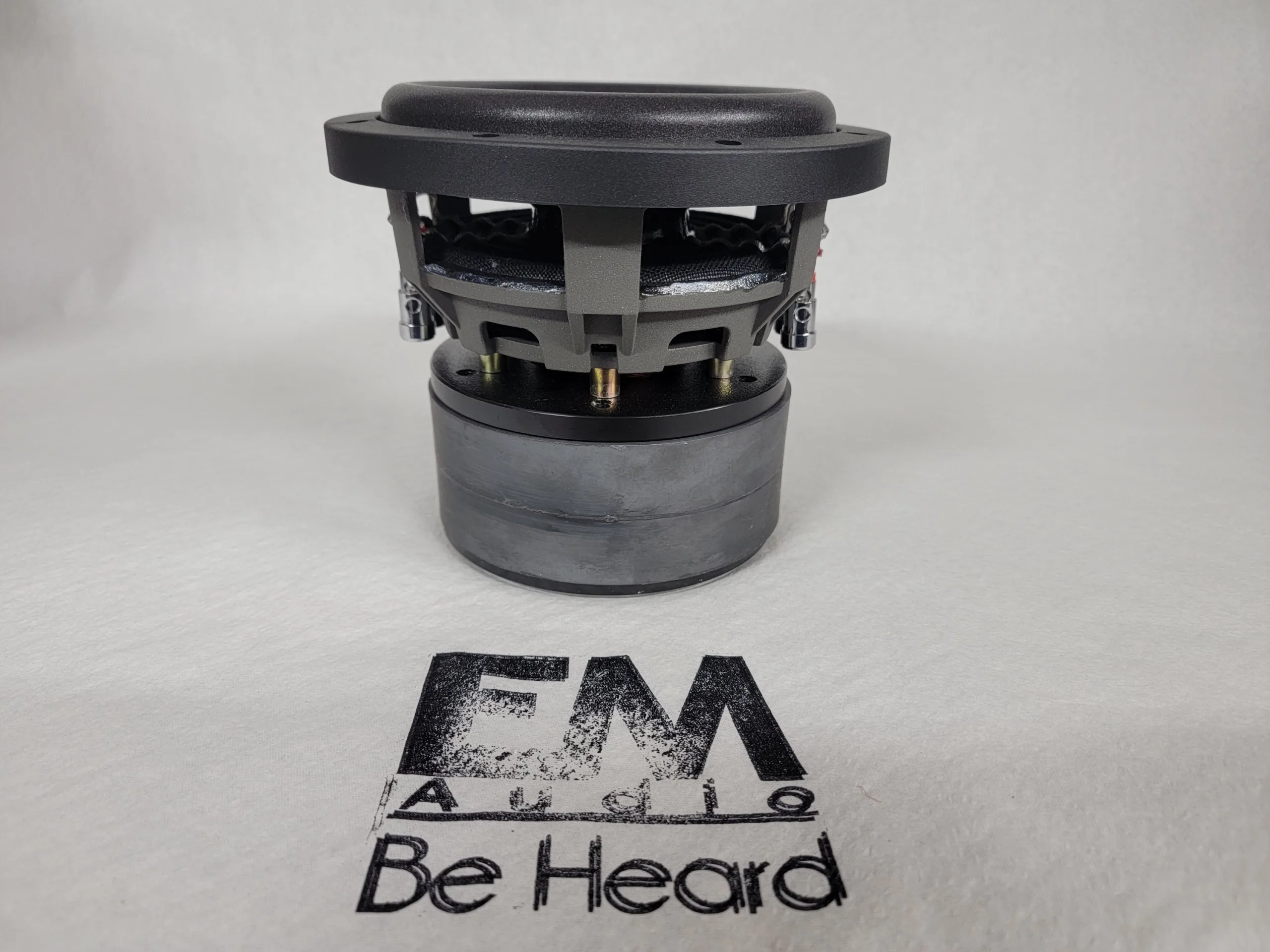

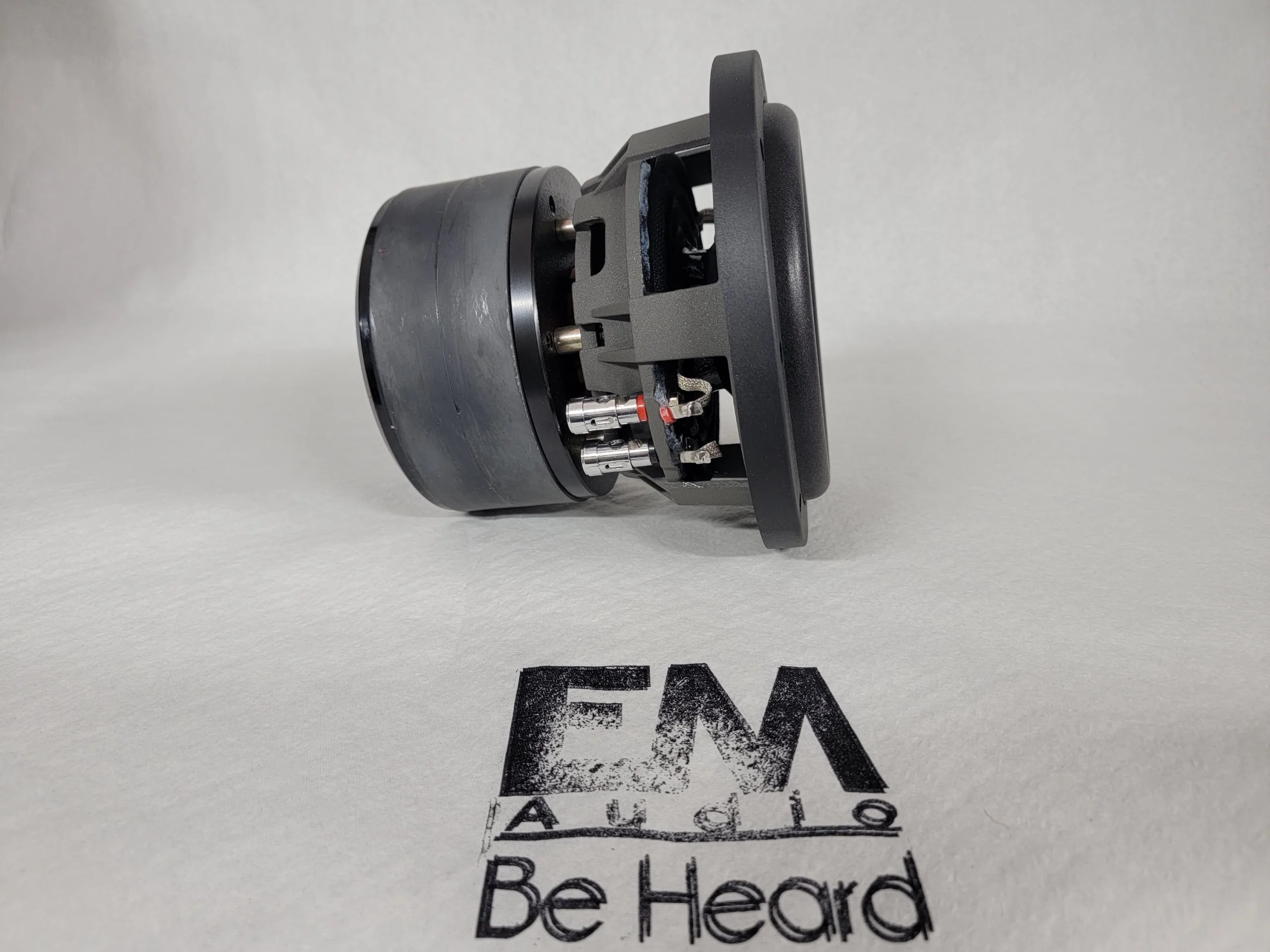

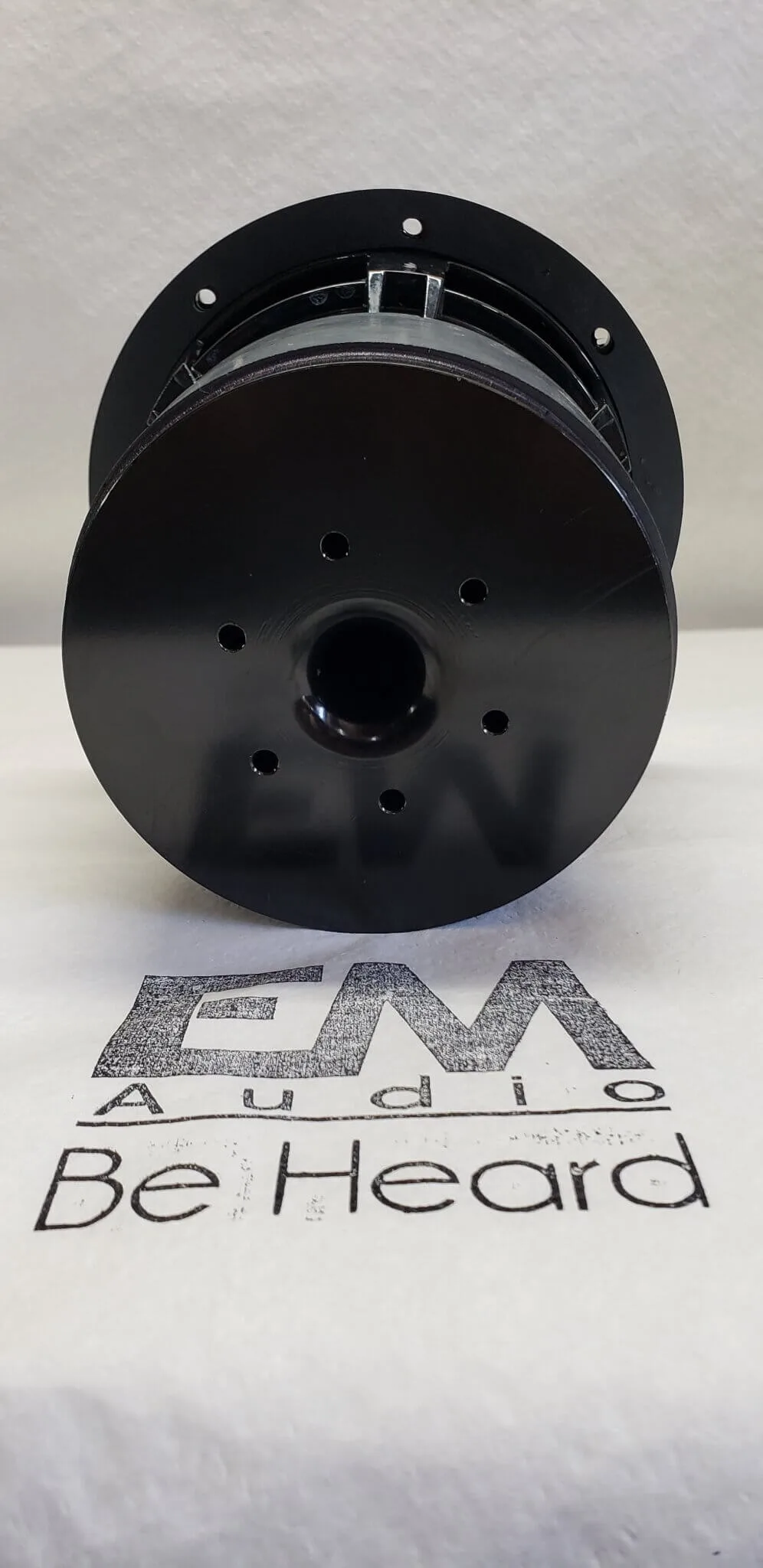

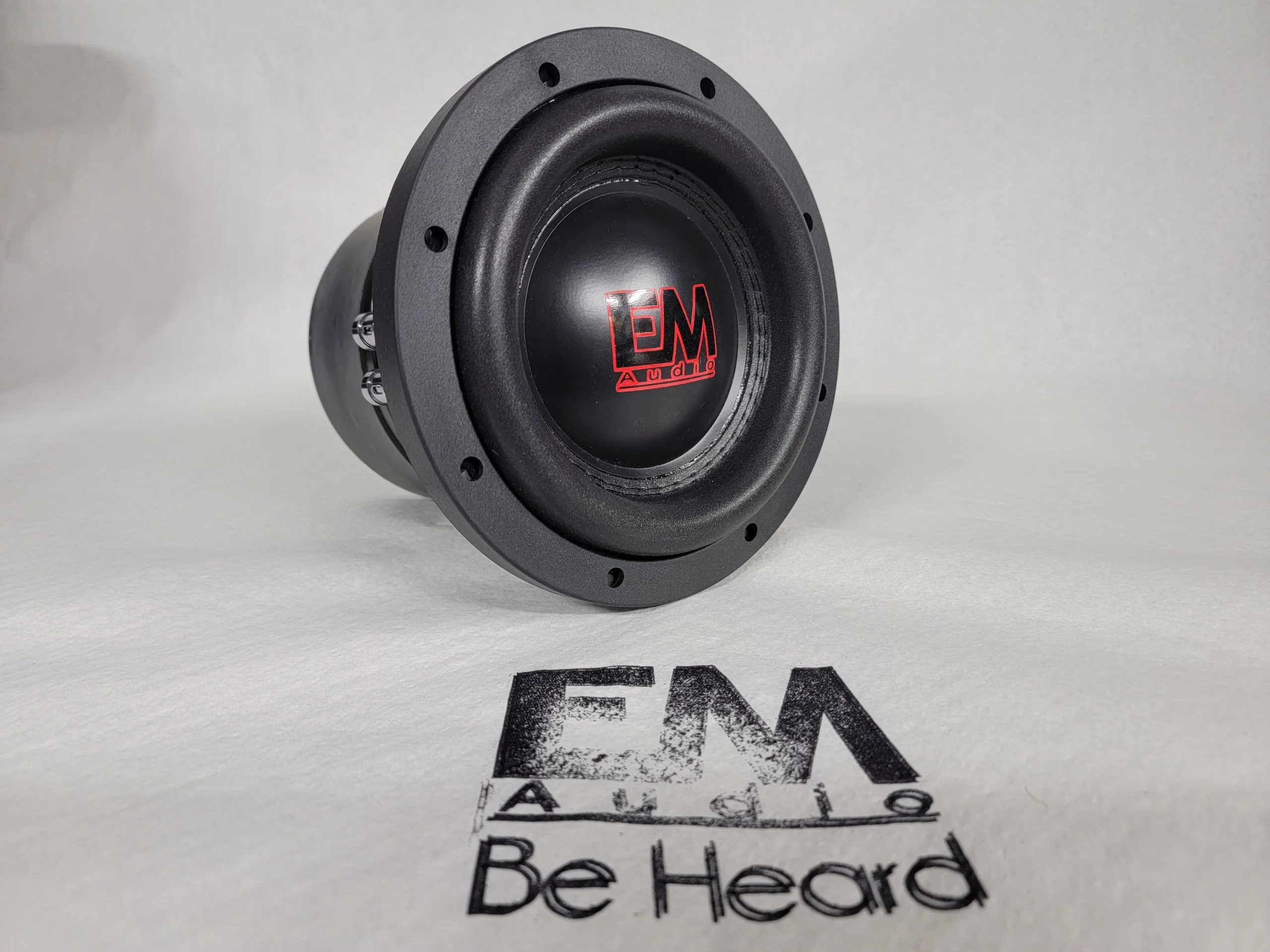

The EM 6.5HD v2 is one of the baddest 6.5″ subwoofers you can buy. A 105 oz double-stack, heavily vented low-carbon steel motor and a beefy 2″ 4-layer American-made copper coil give it 16 mm of one-way xmax at 70% BL, a 700W RMS music rating and 4,000W clamped on burps (tested in a TL 6th-order burp box; video available). We have measured over 151 dB on a single sub, and six of them ported in an under-seat truck box do over 148 dB on music. Huge low bass in a tight space, hand built in North Carolina by one of the only companies building its own 6.5s and 8s in house.
Highlights
- 700W RMS continuously rated; 4,000W clamped on burps
- 16 mm one-way xmax
- 2″ 4-layer American-made copper coil, dual 4 or dual 2 ohm

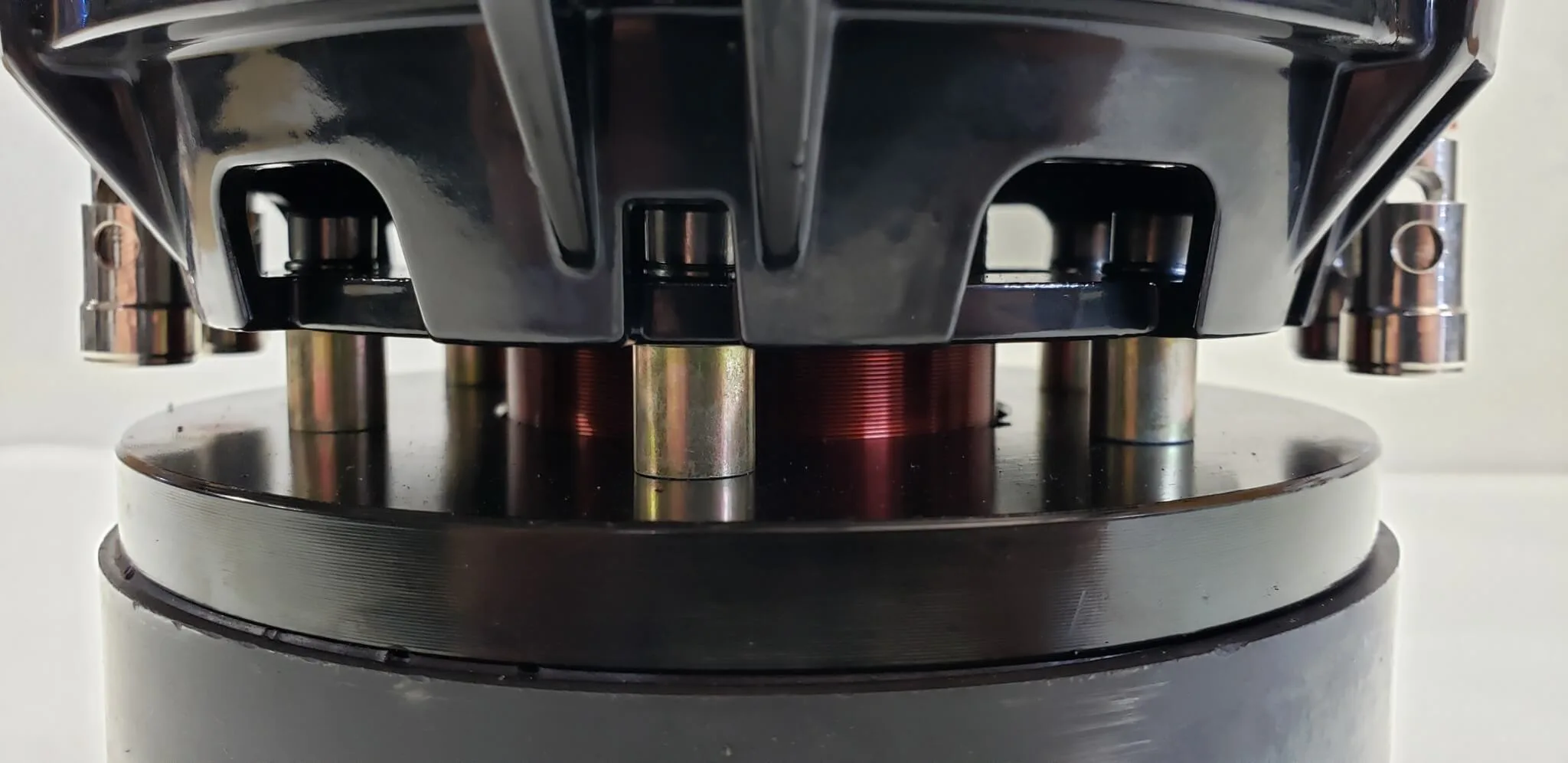

- 105 oz double-stack, heavily vented motor
- Double-stacked 5.39″ × 2″ spiders (3-spider pack optional) with a single round lead stitched in
- Tall roll red-stitched surround
- 3.5″ black poly dust cap with 2-tone EM Audio logo
- Aluminum basket with 0.5″ spacer sleeves, 10 ga. push terminals, stainless hardware and lock washers
Specs
- Mounting depth: 5.375″
- Motor width: 5.375″
- Cutout diameter: 5.90″
- Outside diameter: 7.08″
- Motor weight: 12 lbs
Recommended enclosure
Sealed: 0.3–0.4 cu ft. Ported: 0.5 cu ft, tuned to 36 Hz. 4th and 6th order friendly. These sizes are for rated power. If you compete or run over rated power, work with your box designer, or run the numbers in our box calculator.
Every EM Audio subwoofer is hand built to order in North Carolina. Custom orders take a minimum of 15 business days to build and are final sale. Custom powder-coat frame and dustcap colors, a stiffer 3-spider pack, direct 8 ga. OFC leads and custom dustcap logo text are available as options above. Real carbon fiber dust caps are in Dust Caps. Recone kits are available for every model we make, so a blown sub is a rebuild, not a replacement.
jordan simms –
Amazing subs. I’ve been running them (2 of them) since mid March on a skar 1200.1. I have them wired at 1 ohm. I’ve had 0 hiccups with them. The owner and builder “Eagle Mareno” is quick to respond (given proper timing of the day) via email, his business Facebook page, and even his personal account need be.
He was in Contact with the builder of the box the subs would be going into, making sure they could get the most out of them.
If not for the quality and craftsmanship he delivers, I’d still recommend EM Audio for the amazing customer support
Tee Bang –
I bought two of these tiny subs because I own a 2010 lexus is350c. A hard top convertible and it has almost to none trunk space when my top folds into my trunk. Long story short, I hooked these two babies up with a 2500watt orion amp. They hit so hard and so clean, they will not disappoint you..when people see my box and subs they laugh at it until they hear them bump..So if you need trunk space and want loud music these are the one and only. You should look no further and get these subs..I’m very satisfied for what I paid for, it’s a bit pricey but you get what you paid for and that’s quality. I have nothing negative to say about these babies. Credits to EM Audio,, Keep up the good work.
Mike (verified owner) –
best I’ve had the pleasure of listening to. I love the punch a 6.5 subwoofer gives but finding the right one to deliver deep killer lows too has been a long road until now. I can honestly say my search is over I wish I had found these at the beginning of my journey, definitely would have saved me money in the long run. oh well live and learn.
These subs are AWESOME.
thank you EM audio. one happy customer with a grin ear to ear
Karlos Avalos (verified owner) –
Wow! Very impressed with this sub. It replaced a ctsounds meso 8″. It hits harder and sounds cleaner than the 8 in a smaller package. I may buy another. Very happy with the purchase and well worth the money.
Nick P. –
I wanted something away from the mainstream. I found two 6.5 subs second hand. Wow!! If you can afford them buy . I’m planning a SQ system and it’s gonna be EM all the way. Thank you for an amazing product.
